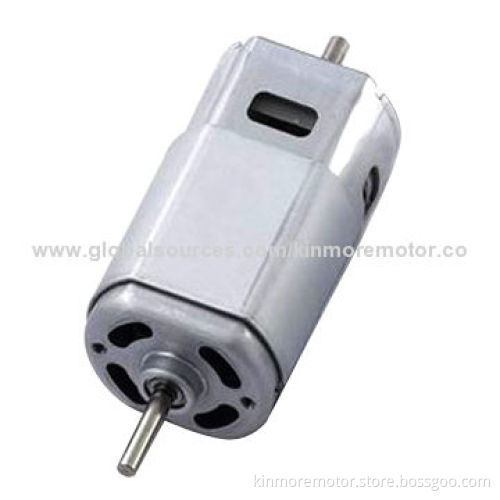

12V micro DC motor with flux ring for air pump
- Payment Type:
- T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T, L/C, Western Union, Cash, PayPal or MoneyGram |
|---|
- Diameter: 35.8mm
- Length of housing: 63mm
- Shaft diameter: 3.175mm
- Voltage:
- Operating range: 6.0-18.0V
- Nominal voltage: 12V
- No load:
- Speed: 3,780rpm
- Current: 0.13A
- At maximum efficiency:
- Speed: 2,570rpm
- Current: 0.78A
- Torque: 19.61mNm/200g, cm
- Output: 5.27W
- Stall torque: 61.08mNm
- Stall current: 2.16A
- Direction of rotation: CW/CCW
- Weight: 230g
- Note: all of the technical data could be customized according to your requirements
- Cordless power tool
- Window lifter
- Air pump
- Operating range: 6.0-18.0V
- Nominal voltage: 12V
- Speed: 3,780rpm
- Current: 0.13A
- Speed: 2,570rpm
- Current: 0.78A
