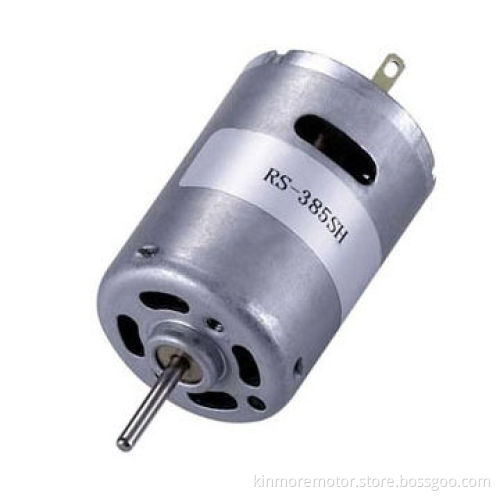

24V DC Motor for Power Tools, RC Cars, Vacuum Cleaners, Drill
  • 24V DC Motor for Power Tools, RC Cars, Vacuum Cleaners, Drill
24V DC Motor for Power Tools, RC Cars, Vacuum Cleaners, Drill

24V DC Motor for Power Tools, RC Cars, Vacuum Cleaners, Drill

Get Latest Price
Payment Type:
T/T or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C at Sight
Product Description
Product Description
  • Specifications:
    • Material: SECD
    • Motor housing (D x L): Ø27.8 x 38mm
    • Shaft: 2.3mm carbon steel
    • Way of commutation: carbon leaf brush system
    • Structure: 2-pole stators and 3-slot armature
    • Insulation: class F magnet wire
    • Rotation: CW/CCW and reversible
    • EMC/EMI suppression: (optional)
    • Iron end cap
    • Ideal for power tools, RC cars, vacuum cleaners
    • Ball bearing on the driving sides are available
  • Technical performance data:
    • Rated voltage: 24V
    • No loading speed: 4,967rpm
    • No loading current: 0.16A (maximum, 0.2A)
    • Efficiency (maximum):
      • Speed: 3,800rpm
      • Current: 0.16A
      • Torque: 54.9g/cm
    • At stall:
      • Torque: 233.8g/cm
      • Current: 0.53A (0.8A (maximum))
    • Options: shaft length, technical data like voltage, speed, torque, optional EMI and EMC suppression
  • More information:
    • Auto DC motor, electric motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor and more
  • Size range:
    • Diameter: 6 to 52mm
    • DC voltage range: 1.5 to 42V
    • AC rectify: 100, 110, 220, 230, 240V and more
    • Speed range: 1 to 30,000rpm
    • Stall torque: 5 to 30kg.cm
  • Applications: home appliance, power tools, toys and model, precision instrument, office equipment, personal care product, automotive, audio and visual equipment and more
  • Our service:
    • OEM and customization are available
    • ROHS Directive-compliant
    • Ball bearing in output side
    • EMI suppression
    • Low-cogging design
    • High degree of protection
    • Small mechanical time constant
    • Resist intense vibrations
    • Zero axial gap
    • Low noise design
    • Fast response(small tm)
    • High torque at a low speed
    • PTC protection
    • Penolic resin base commutator
    • Epoxy coating armature
    • Light weight and long life
  • Material: SECD
  • Motor housing (D x L): Ø27.8 x 38mm
  • Shaft: 2.3mm carbon steel
  • Way of commutation: carbon leaf brush system
  • Structure: 2-pole stators and 3-slot armature
  • Insulation: class F magnet wire
  • Rotation: CW/CCW and reversible
  • EMC/EMI suppression: (optional)
  • Iron end cap
  • Ideal for power tools, RC cars, vacuum cleaners
  • Ball bearing on the driving sides are available
  • Rated voltage: 24V
  • No loading speed: 4,967rpm
  • No loading current: 0.16A (maximum, 0.2A)
  • Efficiency (maximum):
    • Speed: 3,800rpm
    • Current: 0.16A
    • Torque: 54.9g/cm
  • At stall:
    • Torque: 233.8g/cm
    • Current: 0.53A (0.8A (maximum))
  • Options: shaft length, technical data like voltage, speed, torque, optional EMI and EMC suppression
  • Speed: 3,800rpm
  • Current: 0.16A
  • Torque: 54.9g/cm
  • Torque: 233.8g/cm
  • Current: 0.53A (0.8A (maximum))
  • Auto DC motor, electric motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor and more
  • Diameter: 6 to 52mm
  • DC voltage range: 1.5 to 42V
  • AC rectify: 100, 110, 220, 230, 240V and more
  • Speed range: 1 to 30,000rpm
  • Stall torque: 5 to 30kg.cm
  • OEM and customization are available
  • ROHS Directive-compliant
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High degree of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low noise design
  • Fast response(small tm)
  • High torque at a low speed
  • PTC protection
  • Penolic resin base commutator
  • Epoxy coating armature
  • Light weight and long life
