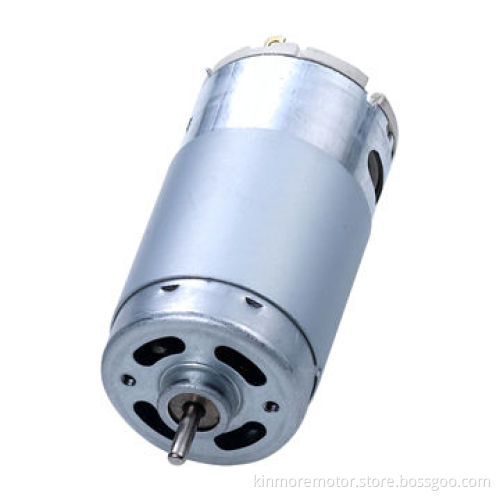

12V DC high torque electric motor for cordless power tool
  • 12V DC high torque electric motor for cordless power tool
12V DC high torque electric motor for cordless power tool

12V DC high torque electric motor for cordless power tool

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Measuring conditions:
    • Rated voltage: 12  V DC
    • Motor Position: To be measured with motor horizontally held
    • Environmental temperature：25±10℃
    • Environmental humidity：65%±20%RH
  • Electrical characteristics:
    • At No load
      • Speed: 16,000 ±10% rpm
      • Current: 1.1  A(max   1.8A)
    • At Max Efficiency
      • Torque: 548.5 g.cm
      • Speed: 14366 ±10% rpm
      • Current: 9.68  A(max   19.3A)
    • 2.3.At Stall
      • Torque: 5370 g.cm
      • Current: 85  A(max   127.5A)
    • Direction of rotation: CCW  (Counter-clockwise when viewing from the output shaft end)
  • Mechanical characteristics:
    • Dimension drawing: See<OUTLINE>.
    • End play: 0.05~0.55mm
    • Operating temperatures: -10 ~ +60 ℃
  • Rated voltage: 12  V DC
  • Motor Position: To be measured with motor horizontally held
  • Environmental temperature：25±10℃
  • Environmental humidity：65%±20%RH
  • At No load
    • Speed: 16,000 ±10% rpm
    • Current: 1.1  A(max   1.8A)
  • At Max Efficiency
    • Torque: 548.5 g.cm
    • Speed: 14366 ±10% rpm
    • Current: 9.68  A(max   19.3A)
  • 2.3.At Stall
    • Torque: 5370 g.cm
    • Current: 85  A(max   127.5A)
  • Direction of rotation: CCW  (Counter-clockwise when viewing from the output shaft end)
  • Speed: 16,000 ±10% rpm
  • Current: 1.1  A(max   1.8A)
  • Torque: 548.5 g.cm
  • Speed: 14366 ±10% rpm
  • Current: 9.68  A(max   19.3A)
  • Torque: 5370 g.cm
  • Current: 85  A(max   127.5A)
  • Dimension drawing: See<OUTLINE>.
  • End play: 0.05~0.55mm
  • Operating temperatures: -10 ~ +60 ℃
