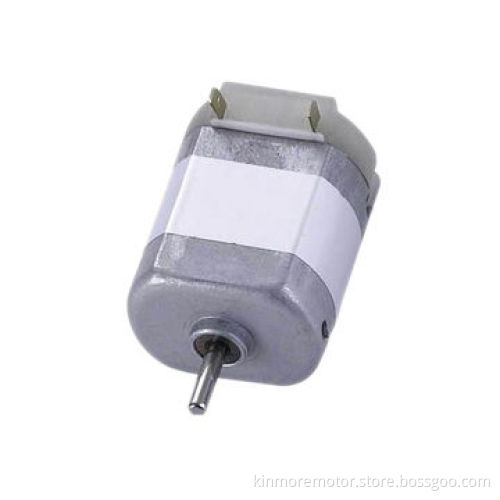

12V DC Motor with 20.4 x 15.4 x 25mm Casing, Ideal for Rearview Mirror and RC Model

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal

Product Description

Specifications: Motor housing (D x F x L): Ø20.4 x 15.4 x 25mm

Material: SECD

Shaft: 2.0mm carbon steel (nickel-coated)

Way of commutation: carbon brushes

Structure: 2-pole stators and 3-slot armature

Rotation: CW/CCW and reversible

EMC/EMI suppression: optional

Plastic end cap

Performance: Rated voltage: 12V DC

At no load: Speed: 8,200 ±10% rpm

Current: 0.0045A (maximum 0.17A)At maximum efficiency speed 6,475 ±10% rpm

Torque: 17.3g.cm

At stall: Current: 0.63A

Torque: 79.6g.cm

Options: shaft length, technical data like voltage, speed, torque, optional EMI, EMC and vibrator

Ideal for car headlamps and mirror adjusters

Packaging: Quantity: 350pcs

Gross weight: 23kg

Dimensions: 25 x 20.4x 15.4cm

Customization options: OEM and customization are available

Compliant with the RoHS Directive

Ball bearing in output side

EMI suppression

Low-cogging design

High degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low noise design

Fast response (small Tm)

High torque at a low speed

PTC protection

Epoxy coating armature

Lightweight and long lifespan
