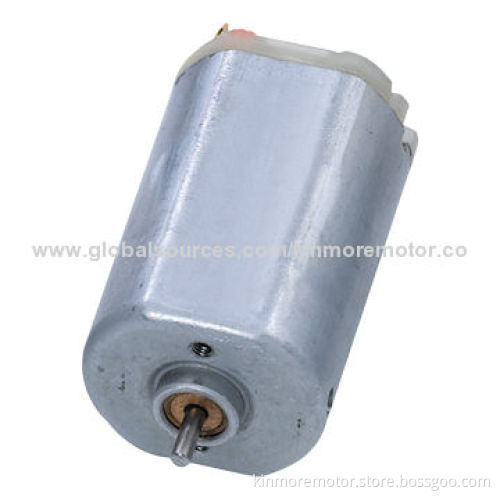

12V DC motor with high speed for window lifter

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Dimension:

Diameter of housing: 28.5mm
Length of housing: 46.5mm
Diameter of shaft: 2.3mm
Length of shaft: could be custom made

Specifications:

Voltages:
- Operating range: 6.0-12.0V
- Nominal voltage:12V
No load:
- Speed: 16,000rpm
- Current: 0.38A
At maximum efficiency
Speed: 13,892rpm
Current: 2.5A
Torque: 163.2g.cm
Output: 23.31W
Stall torque: 1240g.cm
Stall current: 16.5A
Rotation of direction: CW/CCW
Note: All of the data could be custom made

Applications:

Exhaust fan
Headrest regulation
Window lifter

Constructions of motor:

2-pole stator
Sr ferrite permanent magnet
3, 5, 7, 8, 9, 12 slots armature
Silicone steel lamination with epoxy coating
High carbon steel shaft
Cu-Ag alloys commutator
Copper-graphite brushes
Be-Cu leaf-brush commutating system
SECD round/flat shape housing
SECD end cap/PA66+fiber end cap
Cylinder (Self-aligning) sintered bush
155 degrees (Class F) copper wire

Inspection to guarantee reliable quality:

Tooling inspection
Material lot acceptance inspection
Material life test
First article inspection
Operator self-inspection
Random inspection
100% inspection to key process and motor electric performance
Final inspection

Diameter of housing: 28.5mm

Length of housing: 46.5mm

Diameter of shaft: 2.3mm

Length of shaft: could be custom made

Voltages:

Operating range: 6.0-12.0V
Nominal voltage:12V

No load:

Speed: 16,000rpm
Current: 0.38A

At maximum efficiency

Speed: 13,892rpm

Current: 2.5A

Torque: 163.2g.cm

Output: 23.31W

Stall torque: 1240g.cm

Stall current: 16.5A

Rotation of direction: CW/CCW

Note: All of the data could be custom made

Operating range: 6.0-12.0V

Nominal voltage:12V

Speed: 16,000rpm

Current: 0.38A

Exhaust fan

Headrest regulation

Window lifter

2-pole stator

Sr ferrite permanent magnet

3, 5, 7, 8, 9, 12 slots armature

Silicone steel lamination with epoxy coating

High carbon steel shaft

Cu-Ag alloys commutator

Copper-graphite brushes

Be-Cu leaf-brush commutating system

SECD round/flat shape housing

SECD end cap/PA66+fiber end cap

Cylinder (Self-aligning) sintered bush

155 degrees (Class F) copper wire

Tooling inspection

Material lot acceptance inspection

Material life test

First article inspection

Operator self-inspection

Random inspection

100% inspection to key process and motor electric performance

Final inspection
