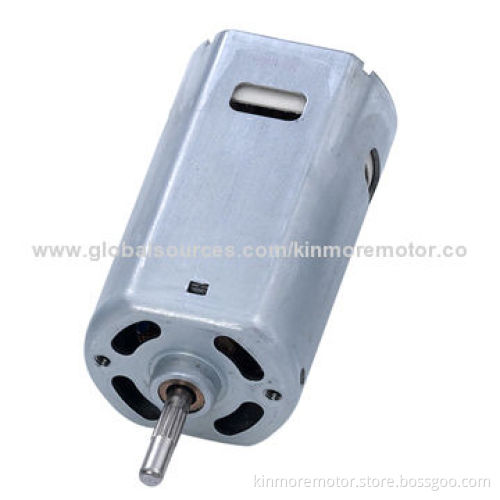

DC Motor with 220V High-voltage for Power Brush/Hair Clipper

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Key features:

DMD insulation
Cage brush system
Metal end cap
8 slots armature
16 bars commentators

Specifications:

Voltage:
- Operating range: AC rect
- Nominal voltage: 220V
No load
- Speed: 10,100rpm
- Current: 0.06A
At maximum efficiency
Speed: 6,628rpm
Current: 0.28A
Torque: 382.7g.cm
Output: 25.33W
Stall torque: 938g.cm
Stall current: 0.66A
Direction rotation: CW/CCW
Noted: could be custom made according to your demand.

Typical applications:

Rotary tool
Power brush
Mixer
Hair clipper

Inspection to guarantee reliable quality:

Tooling inspection
Material lot acceptance inspection
Material lifespan test
First article inspection
Operator self-inspection
Random inspection
100% inspection to key process and motor electric performance
Final inspection

Construction of motor:

Two-pole stator
SR ferrite permanent magnet
3, 5, 7, 8, 9 and 12 slots armature
Silicone steel lamination with epoxy coating
High-carbon steel shaft
Cu-Ag alloys commentator
Copper graphite brushes
Cu leaf brush commutation system
SECD round/flat-shaped housing
SECD end cap/PA66 and fiber end cap
Cylinder (self-aligning) sintered bush
155° (class F) copper wire

DMD insulation

Cage brush system

Metal end cap

8 slots armature

16 bars commentators

Voltage:

Operating range: AC rect
Nominal voltage: 220V

No load

Speed: 10,100rpm
Current: 0.06A

At maximum efficiency

Speed: 6,628rpm

Current: 0.28A

Torque: 382.7g.cm

Output: 25.33W

Stall torque: 938g.cm

Stall current: 0.66A

Direction rotation: CW/CCW

Noted: could be custom made according to your demand.

Operating range: AC rect

Nominal voltage: 220V

Speed: 10,100rpm

Current: 0.06A

Rotary tool

Power brush

Mixer

Hair clipper

Tooling inspection

Material lot acceptance inspection

Material lifespan test

First article inspection

Operator self-inspection

Random inspection

100% inspection to key process and motor electric performance

Final inspection

Two-pole stator

SR ferrite permanent magnet

3, 5, 7, 8, 9 and 12 slots armature

Silicone steel lamination with epoxy coating

High-carbon steel shaft

Cu-Ag alloys commentator

Copper graphite brushes

Cu leaf brush commutation system

SECD round/flat-shaped housing

SECD end cap/PA66 and fiber end cap

Cylinder (self-aligning) sintered bush

155° (class F) copper wire
