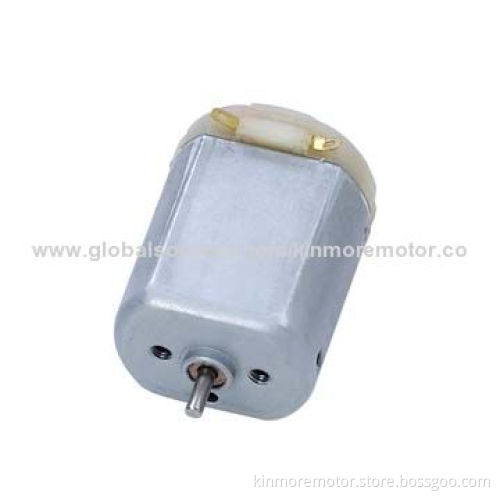

Hot sale micro motor DC 24V with plastic end cap for door lock actuator

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Key features:

Plastic end cap
Oil-impregnated bearing
Leaf brush system
Carbon steel shaft

Dimension of the motor:

Diameter of the housing: Ø24mm
Length of the housing: 30.5mm
Diameter of the shaft: Ø2mm
Length of the shaft: could be custom-made

Technical data of the motor:

Nominal voltage: 24V
No load:
- Speed: 23600rpm
- Current: 0.13A
At max efficiency:
- Speed: 19662rpm
- Current: 0.65A
- Torque: 49.6g.cm
At stall:
- Torque: 297.1g.cm
- Current: 3.24A
Direction of rotation: CW/CCW

Remarks: the above technical data are only for reference, we can customize them according to different requirements after evaluation

Typical applications:

Door lock actuator
Hair trimmer
Hair curler
Scanner

Kinmore Mini Electric Motor product range:

Permanent magnet DC mini electric motor/generator, geared motor
Our main products: motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor, brushless motor and more

Products size range: 6-66mm diameter

DC voltage range: 1.5V-42V

AC rectify: 100V, 110V, 220V, 230V, 240V and more

Speed range: 1RPM-30,000RPM

Stall torque: 5g.cm-30kg.cm

Inspection to guarantee reliable quality:

Tooling inspection
Material lot acceptance inspection
Material lifespan test
First article inspection
Operator self-inspection
Random inspection
100% inspection to key process and motor electric performance
Final inspection

Plastic end cap

Oil-impregnated bearing

Leaf brush system

Carbon steel shaft

Diameter of the housing: Ø24mm

Length of the housing: 30.5mm

Diameter of the shaft: Ø2mm

Length of the shaft: could be custom-made

Nominal voltage: 24V

No load:

Speed: 23600rpm
Current: 0.13A

At max efficiency:

Speed: 19662rpm
Current: 0.65A
Torque: 49.6g.cm

At stall:

Torque: 297.1g.cm
Current: 3.24A

Direction of rotation: CW/CCW

Speed: 23600rpm

Current: 0.13A

Speed: 19662rpm

Current: 0.65A

Torque: 49.6g.cm

Torque: 297.1g.cm

Current: 3.24A

Door lock actuator

Hair trimmer

Hair curler

Scanner

Permanent magnet DC mini electric motor/generator, geared motor

Our main products: motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor, brushless motor and more

Tooling inspection

Material lot acceptance inspection

Material lifespan test

First article inspection

Operator self-inspection

Random inspection

100% inspection to key process and motor electric performance

Final inspection
