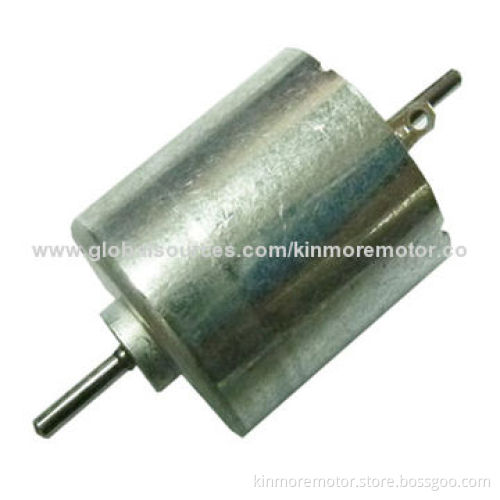

Electric DC Motor with 17.1mm Diameter, Precious Metal Brush

Electric DC Motor with 17.1mm Diameter, Precious Metal Brush

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Specifications:

Motor housing diameter: 17.1mm
Length of housing: 17.8mm
Shaft diameter: 1.5mm
Weight: 16g (Approximately)

Features:

Permanent magnet/NdFeB Magnet
Precious metal brush
Stainless steel shaft
Oil-impregnated bearing

Performance:

Voltage:
- Operating range: 3.0-12.0V
- Nominal voltage: 12V
No load:
- Speed: 14,000rpm
- Current:0.07A
At maximum efficiency:
- Speed: 13,000rpm
- Current: 0.13
- Torque: 0.5mnm/5g.cm
- Output: 0.67W
At stall
- Torque: 5.88mNm/60g.cm
- Stall current: 0.9A

Remarks: the above technical data can be only for your reference, we can custom made as per your requirements

Typical applications:

Radio control model
Servo mechanism
Electric shaver
Toys

Customization options:

OEM orders and customized designs are accepted
With the RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small Tm)
High-torque at low-speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Lightweight and long lifespan

Constructions of motor:

2-pole stator
Sr ferrite permanent magnet
3, 5, 7, 8, 9, 12 slots armature
Silicon-steel lamination with epoxy coating
High-carbon steel shaft
Cu-Ag alloys commutator
Copper-graphite brushes
Be-Cu leaf-brush commutating system
SECD round/flat shape housing
SECD end cap/PA66 + fiber end cap

About us:

Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors
Product size range: 6 - 52mm, diameter
DC voltage range: 1.5 - 42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1 - 30,000RPM
Stall torque: 5-30kg.cm
Applications: home appliance, power tools, toys, model, precision instrument, office equipment, personal care product, automotive, audio, visual equipment and more
