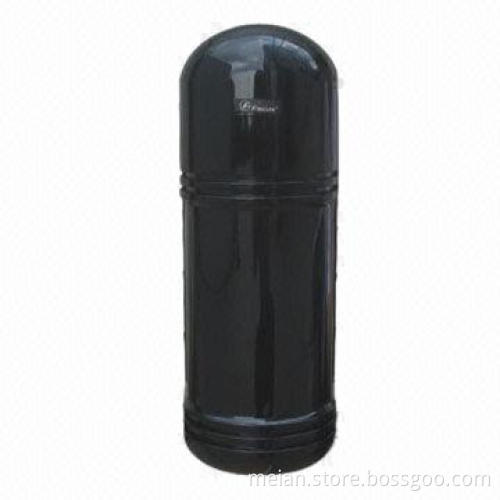

3 Beam Sensor with DSP Chip, 9 to 24V DC, 11 to 18V AC Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C at Sight, T/T

Product Description

With DSP chip

Outdoor distance: 50, 100, 150, 200 and 250m

Indoor distance: 150, 300, 450, 600 and 750m

Beams: three

Optical source: digital infrared pulse

Response speed: 50 to 700 milliseconds

Alarm output common: NC and no contact capacitor (30V AC/DC, 0.5mA)

Alarm output bus: MA bus across wave carrier model

Voltage: 9 to 24V DC, 11 to 18V AC

Current: 60 and 65mA

Operating temperature: -25 to 60°C

Humidity: 5 to 95% RH

Horizontal adjustment axis: 180°

Vertical adjustment axis: ±10°

Tamper output: normal close (NC) touching capability (24V AC/DC, 0.5mA)

Crust material: PC resin tin metal
