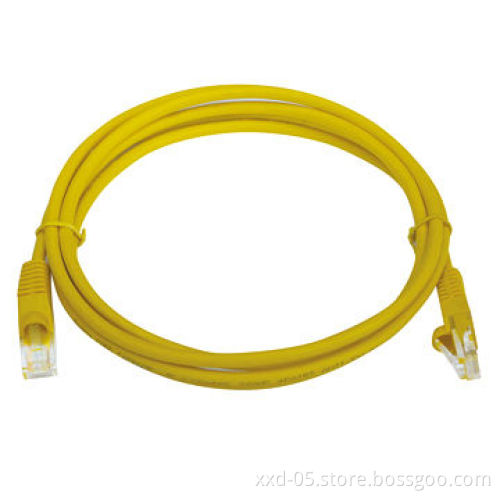

Cat5e Patch Cord, 24AWG, Bare Copper Conductor, UTP RJ45 Male to Male, Fluke Test, 100MHz Frequency

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union, 30% in Advance and 70% befor

Product Description

Features:

RJ45 8P8C male to male patch cord
Industrial standards: YD/T1019-2001, (USA) ANSI/TIA/EIA-568-B,(Worldwide) ISO/IEC 11801/71156
Conductor: solid and stranded oxygen-free copper wire
Jackets: PVC, LSZH, HDPE, rip wire
Molded type plug: Cat6 8P8C RJ-45 short long plug withinjection molding circle caps (or injection molding strain reliefcaps)
Uses 24AWG (UTP), stranded bare copper, four pairs
Colors: black, gray, red, white, blue, yellow, green, orange,purple and pink or can be customized
Lengths: 1/2/3/4/5/8/10/15m or can be customized
Rating temperature: 75°C
Meets Cat6 specifications or as per customization
Testing: 100% continuity test and AQL 15% attenuation, next,return loss, impedance test
Designed for network adapters, hubs, switches, DSL/cable,modems, patch panels and other twisted pair applications

Applications:

Category:

Cat5: 100MHz transmission frequency with high-density andhigh-quality insulation jacket
Cat5e: used for Ethernet 1,000Mbps, less attenuation and ANEXT,higher ratio of ACR and structural
Cat6: most suitable for transmission rate higher than 1Gbpsapplication, improves the performance of ANEXT, can provide twofoldin broadband Cat5e
Cat6a: performance higher than Cat6, final index reached 300MHzbandwidth
UTP: small diameter save space, lightweight, flexible, easycabling, lower price
FTP/STP: reduces or eliminates ANEXT, independence andflexible, stronger flame retardant

RJ45 8P8C male to male patch cord

Industrial standards: YD/T1019-2001, (USA) ANSI/TIA/EIA-568-B,(Worldwide) ISO/IEC 11801/71156

Conductor: solid and stranded oxygen-free copper wire

Jackets: PVC, LSZH, HDPE, rip wire

Molded type plug: Cat6 8P8C RJ-45 short long plug withinjection molding circle caps (or injection molding strain reliefcaps)

Uses 24AWG (UTP), stranded bare copper, four pairs

Colors: black, gray, red, white, blue, yellow, green, orange,purple and pink or can be customized

Lengths: 1/2/3/4/5/8/10/15m or can be customized

Rating temperature: 75°C

Meets Cat6 specifications or as per customization

Testing: 100% continuity test and AQL 15% attenuation, next,return loss, impedance test

Designed for network adapters, hubs, switches, DSL/cable,modems, patch panels and other twisted pair applications

PC to hubs

PC to PCs

Hub to hubs

Cat5: 100MHz transmission frequency with high-density andhigh-quality insulation jacket

Cat5e: used for Ethernet 1,000Mbps, less attenuation and ANEXT,higher ratio of ACR and structural

Cat6: most suitable for transmission rate higher than 1Gbpsapplication, improves the performance of ANEXT, can provide twofoldin broadband Cat5e

Cat6a: performance higher than Cat6, final index reached 300MHzbandwidth

UTP: small diameter save space, lightweight, flexible, easycabling, lower price

FTP/STP: reduces or eliminates ANEXT, independence andflexible, stronger flame retardant
