High Performance 10GB FTP RJ45 8p8c Zinc Alloy Cat 6a Keystone JackNew

High Performance 10GB FTP RJ45 8p8c Zinc Alloy Cat 6a Keystone JackNew

Get Latest Price

Payment Type:: T/T or Western Union, 30% in Advance and 70% befor

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union, 30% in Advance and 70% befor

Product Description

Specifications:

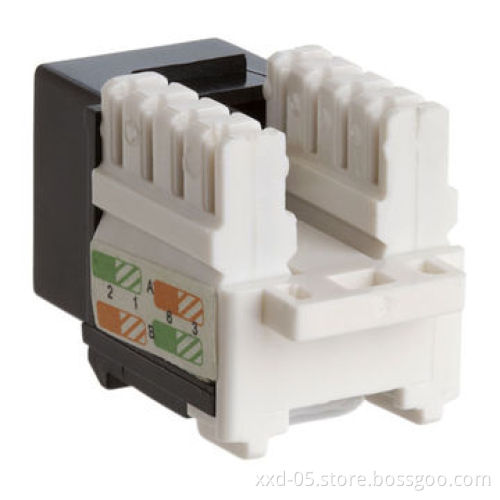

Cat5e U/FTP keystone jack

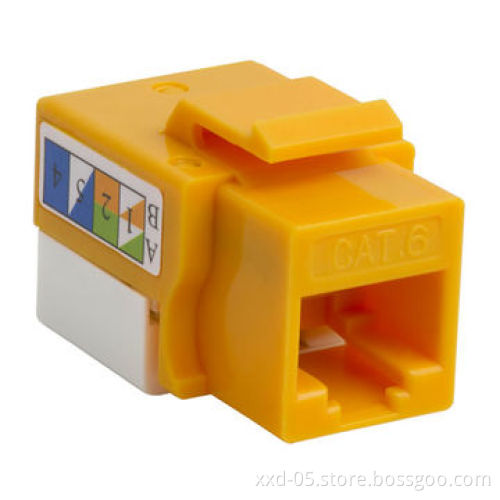

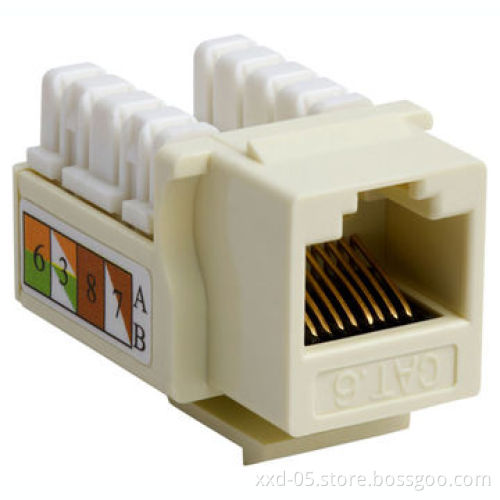

Cat 6 U/FTP keystone jack

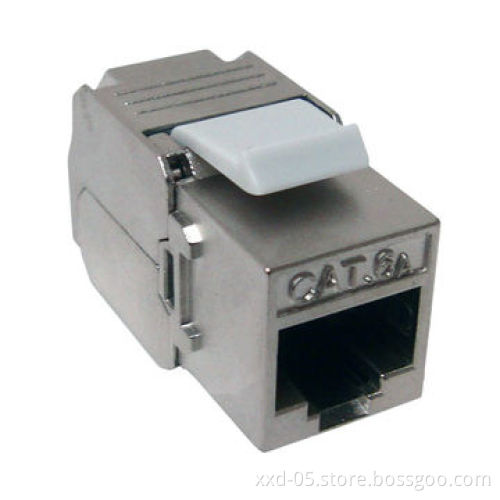

Cat 6A U/FTP keystone jack
Cat7 keystone jack
Various information modules provide multiple choices for wiring system
The design of modules exceed the standard requirement
Units with colors are easy to identity and easy to manage network
Be able to meet the allocation requirement of various work

Housing:

ABS (UL94V-0)
High impact PC
PC/ABS (UL94V-0)

Standards:

Meet TIA/EIA-568-A and TIA/EIA-568-B category 5E requirements
Meet TIA/EIA TSB-40
Meet ISO/IEC generic cabling standard 11801
Meet CENELEC Generic cabling standard EN50173
Test standard: Cat. 5e, Cat.6 channel link

Physicals:

IDC connector accept 22-26 AWG solid wire
Jack wiring: 50-micron inch gold plate over 100-micron inch nickel
Housing: High impact flame retardant plastic UL94V-0 rated
IDC connector suitable for 110 punch down and Krone tool

Mechanical:

Plug insertion life: 750cycle/minute
Plug retention force: 30lbs/minute
Electrical:
Current rating: 1.5A
Insulation resistance: 500M Ohms minimum
Contact resistance: 20 Milli-Ohms maximum
DC resistance: 0.1 Ohms maximum
Data transmission rates up to 250Mbps

Packaging:

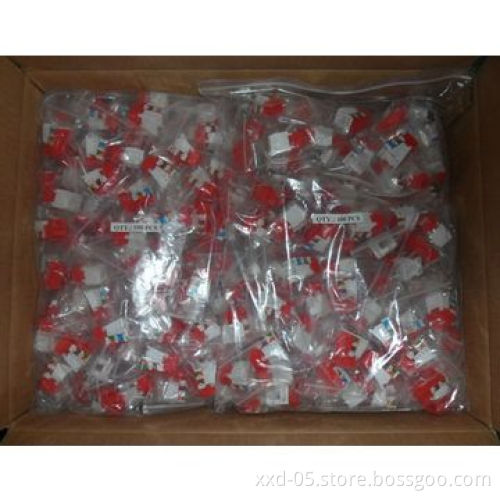

1pc/plastic bag, 100pcs/white box, 10 white box/carton
Carton size: 42x26.5x45cm

Cat5e U/FTP keystone jack

Cat 6 U/FTP keystone jack

Cat 6A U/FTP keystone jack

Cat7 keystone jack

Various information modules provide multiple choices for wiring system

The design of modules exceed the standard requirement

Units with colors are easy to identity and easy to manage network

Be able to meet the allocation requirement of various work

ABS (UL94V-0)

High impact PC

PC/ABS (UL94V-0)

Meet TIA/EIA-568-A and TIA/EIA-568-B category 5E requirements

Meet TIA/EIA TSB-40

Meet ISO/IEC generic cabling standard 11801

Meet CENELEC Generic cabling standard EN50173

Test standard: Cat. 5e, Cat.6 channel link

IDC connector accept 22-26 AWG solid wire

Jack wiring: 50-micron inch gold plate over 100-micron inch nickel

Housing: High impact flame retardant plastic UL94V-0 rated

IDC connector suitable for 110 punch down and Krone tool

Plug insertion life: 750cycle/minute

Plug retention force: 30lbs/minute

Electrical:

Current rating: 1.5A

Insulation resistance: 500M Ohms minimum

Contact resistance: 20 Milli-Ohms maximum

DC resistance: 0.1 Ohms maximum

Data transmission rates up to 250Mbps

1pc/plastic bag, 100pcs/white box, 10 white box/carton

Carton size: 42x26.5x45cm
