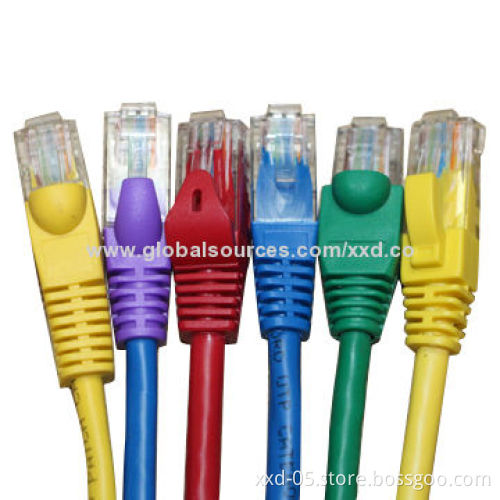

Cat6 UTP Patch Cable with Unshielded RJ45 Plug and 550MHz Patch CordNew
  • Cat6 UTP Patch Cable with Unshielded RJ45 Plug and 550MHz Patch CordNew
Cat6 UTP Patch Cable with Unshielded RJ45 Plug and 550MHz Patch CordNew

Cat6 UTP Patch Cable with Unshielded RJ45 Plug and 550MHz Patch CordNew

Get Latest Price
Payment Type:
T/T or Western Union, 30% in Advance and 70% befor
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union, 30% in Advance and 70% befor
Product Description
Product Description
  • Specifications:
    • Conductor: 7 x 32AWG (7/0.2mm) copper
    • Path cord plug: unshielded RJ45 plug
    • Boot: FR PVC high-injection
    • Jacket: PVC
    • Nominal OD: 5.5mm
    • Insulation: polyolefin
    • Color codes:
      • Pair 1: white/blue
      • Pair 2: white/orange
      • Pair 3: white/green
      • Pair 4: white/brown
    • Length: 0.5, 1, 2, 3, 5m or customized
  • LAN cable standard compliance:
    • Standard: Cat6 TIA/EIA-568-B-2.1, draft 9
    • Compliant with the Fluke test and RoHS Directive
  • OEM serves:
    • Custom for your requirements:
      • Conductor: copper/CCA
      • AWG: 7 x 34 (7/0.16)/7 x 33 (7/0.18)/7 x 32AWG (7/0.2mm)
      • Plug: 8P8C
      • Length: 0.5, 1, 2, 3, 5m or customized
      • Insulation: PE
      • Jacket: PVC/LSZH
  • Applications:
    • Improved attenuation provides cleaner data and video transmissions
    • For 1000 base-T, 100 base-TX, 155Mbps ATM and other high-speed applications
    • Designed for network adapters, hubs, switches, routers, DSL/cable modems and patch panels
    • Snagless patch cables you can stay ahead of the game with the use of this high-speed cabling to distribute data, voice and video
    • Our Cat6 cables will handle bandwidth intensive applications up to 550MHz and beyond
    • Constructed with high-quality cable and a shortened body plug
    • The molded, snag-free boot prevents unwanted cable snags during installation and provides strain-relief
    • The snagless patch cables are available in a variety of colors to easily color code your network installation
  • Packing: polybag, then into carton box
  • Conductor: 7 x 32AWG (7/0.2mm) copper
  • Path cord plug: unshielded RJ45 plug
  • Boot: FR PVC high-injection
  • Jacket: PVC
  • Nominal OD: 5.5mm
  • Insulation: polyolefin
  • Color codes:
    • Pair 1: white/blue
    • Pair 2: white/orange
    • Pair 3: white/green
    • Pair 4: white/brown
  • Length: 0.5, 1, 2, 3, 5m or customized
  • Pair 1: white/blue
  • Pair 2: white/orange
  • Pair 3: white/green
  • Pair 4: white/brown
  • Standard: Cat6 TIA/EIA-568-B-2.1, draft 9
  • Compliant with the Fluke test and RoHS Directive
  • Custom for your requirements:
    • Conductor: copper/CCA
    • AWG: 7 x 34 (7/0.16)/7 x 33 (7/0.18)/7 x 32AWG (7/0.2mm)
    • Plug: 8P8C
    • Length: 0.5, 1, 2, 3, 5m or customized
    • Insulation: PE
    • Jacket: PVC/LSZH
  • Conductor: copper/CCA
  • AWG: 7 x 34 (7/0.16)/7 x 33 (7/0.18)/7 x 32AWG (7/0.2mm)
  • Plug: 8P8C
  • Length: 0.5, 1, 2, 3, 5m or customized
  • Insulation: PE
  • Jacket: PVC/LSZH
  • Improved attenuation provides cleaner data and video transmissions
  • For 1000 base-T, 100 base-TX, 155Mbps ATM and other high-speed applications
  • Designed for network adapters, hubs, switches, routers, DSL/cable modems and patch panels
  • Snagless patch cables you can stay ahead of the game with the use of this high-speed cabling to distribute data, voice and video
  • Our Cat6 cables will handle bandwidth intensive applications up to 550MHz and beyond
  • Constructed with high-quality cable and a shortened body plug
  • The molded, snag-free boot prevents unwanted cable snags during installation and provides strain-relief
  • The snagless patch cables are available in a variety of colors to easily color code your network installation
