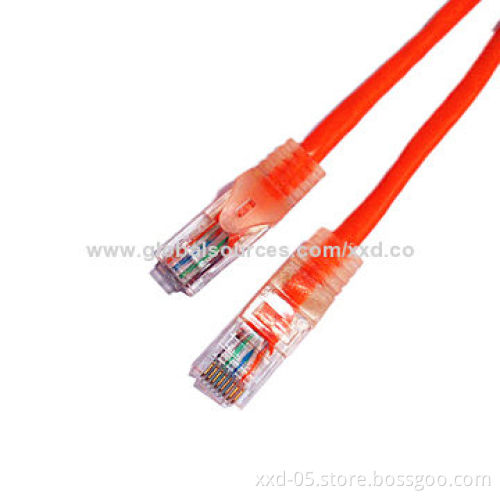

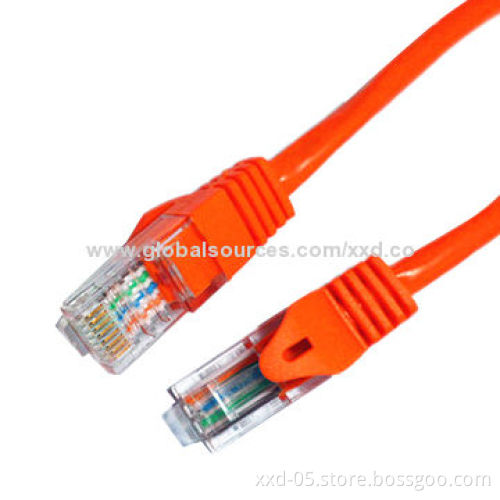

XXD Cat5e Shielded Twisted UTP 24AWG LSZH Network Patch Cable with 305m/Box

XXD Cat5e Shielded Twisted UTP 24AWG LSZH Network Patch Cable with 305m/Box

Get Latest Price

Payment Type:: T/T or Western Union, 30% in Advance and 70% befor

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union, 30% in Advance and 70% befor

Product Description

Features:

This kind of cable use bare copper to be the center conduction with the specification is 24AWG, PE is adopted to be the dielectric, and each pair of the copper is covered by polyester film and AL foil even outer
The earth wire is installed between these two covers
The jacket is made of fire-proof material and it's significative to the Cat5e communication
Beside, LSZH is also at optional
Various colors make network much easier
This Cat5e FTP cable is well conformed to the IEC, TIA/EIA and EN standards and whose electrical characteristics are exceed the latest IEC Cat5e standard

Characteristics:

Electrical:
- Impedance: 100 ±15Ω
- Static electric capacity: 17.1nf/kf (maximum)
- Resistance: 28.6nf/kf (maximum)
- Unbalance resistance: 5% (maximum)
- Unbalance capacity: 330pF/100m (maximum)
- Rated communicate rate: 65%
Physical:
- Copper diameter: 24AWG
- Outer diameter: 6.1mm
- Shielding material: AL foil
- Earth wire: 24-bare copper
- Weight: 11kg/kft
- Minimum bend radius: OD 6-8
- Maximum pulling tension: 10kg
- Jacket material: PVC/LSZH
- Rated temperature: -20-60°C
- Packing: carton
Standards:
- IEC-11801
- EN-50173
- TIA/EIA-568-A-5

Applications:

10/100/1,000Mbps Ethernet
100VG any LAN
Token rings
155/622ATM and more

This kind of cable use bare copper to be the center conduction with the specification is 24AWG, PE is adopted to be the dielectric, and each pair of the copper is covered by polyester film and AL foil even outer

The earth wire is installed between these two covers

The jacket is made of fire-proof material and it's significative to the Cat5e communication

Beside, LSZH is also at optional

Various colors make network much easier

This Cat5e FTP cable is well conformed to the IEC, TIA/EIA and EN standards and whose electrical characteristics are exceed the latest IEC Cat5e standard
