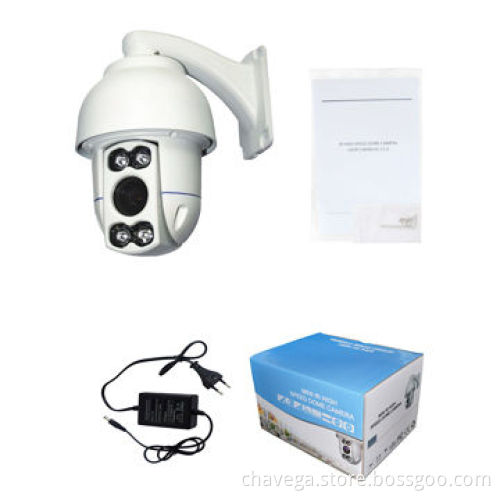

4" mini outdoor IR high speed dome PTZ camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Adopt 10x 1/3 SONY CCD

Rotate 360° in horizontal directiondriven by exact engine,operate stably with precise position-setting

The rotation speed can be adjustable according to the zoom rateof camera lens, auto-focus, auto white balance

Built-in OSD. Several control protocols are compatible and baudrate is adjustable

Vertical 90° continuous monitoring after auto reversing180°

Parameters:

Model No: CSJ-H4RO-E
Image sensor: 1/3" Sony CCD
Signal model: PAL/NTSC
Horizontal resolution: 480TVL
Effective pixel: 795 Horizontal x 596 Vertical
Minimum illumination: Color to B/W
Color: 0.01Lux
B/W: 0.001Lux
S/N radio: >60dB (Enhanced)
Backlight compensation: On/Off
White balance: Auto
Electronic shutter speed range: 1/50~1/12,000 seconds
Focus length range: 3.9~39.0mm
Optical focus: 10X
Focus: Auto/manual, take high-performance DSP to realizecomplete digit and ultra-high speed focus function
Presets: 256
Patrol track: 4 groups, each can record 200 actions
Cruise track: Total 30 presets can join cruise, can setting thepresets' residence time
Other scans: Supports horizontal scan, deuce area scan and scanrandom
Rotation range:
- Horizontal 360° unlimited rotation
- Vertical 90°, auto reversal
Rotation speed: Horizontal & vertical min 0.01°, max200°/S
Communications: RS-485, PELCO D, PELCO P
OSD: Yes
Temperature control: built-in
IR distance: 50m
Power supply: DC12V/2A
Material: Aluminum shell, waterproof criterion IP66
Working environment range: -20~+50 (select temperature controlaccessories), <95%RH
