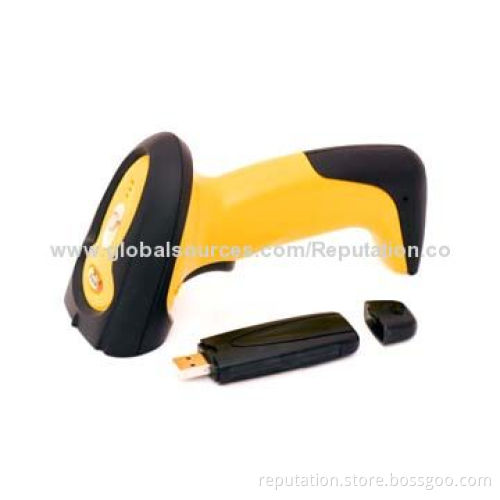

433MHZ Wireless Laser Barcode Scanner with 100mW Power

433MHZ Wireless Laser Barcode Scanner with 100mW Power

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Parameters:

Light source type: visual lasing diode, the wavelength is 650mm
Trigger mode: manual
Scanning mode: single-line scanning
Scanning speed: 100 ±2 times/second
Resolution: ≥4-mil
Printing contrast ratio: the lowest reflectivity difference is 30％
Bit error rate: 1/5-million
Input voltage: 5V DC ±0.25
Power: 100mW (working): 400mW (momentary maximum)
Current: 20mA (working): 100mA (momentary maximum)
Standby current: <20mA
Light intensity: 3,000-12,000 Lux
Depth of field: 5-630mm
Scanning angle: ±60, 65, 42° (left and right, front and back, rotation)
Decoding capacity: UPC/EAN/JAN, UPC/EAN with supplemental, UCC/EAN 128, code 39, MSI, code11, code 39 full ASCII, code 39 tri optic, code 128, code 128 full ASCII, codabar, code93, discrete 2 of 5, IATA, RSS variants, codabar, Chinese 2 of 5,
International general dimensional barcodes, eg Interleaved 2/5, Interleaved 2 of 5, China postal service code and more
Promotion mode: buzzer and LED indicator
Cable interface: USB (standard): PS/2 and RS232 are selectable
External dimensions (L x W x H): 158*68*96mm
Weight: 200g (excluding cables)
Cable standard: straight line, 1m

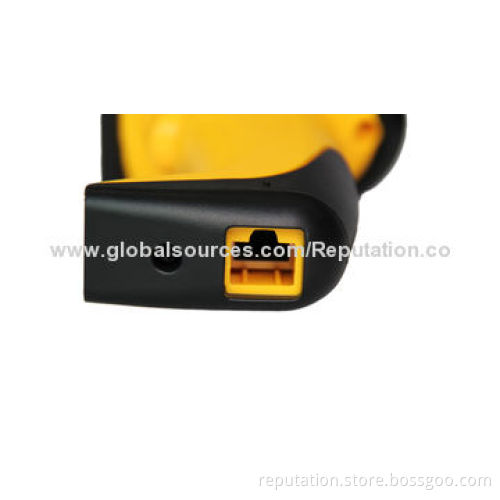

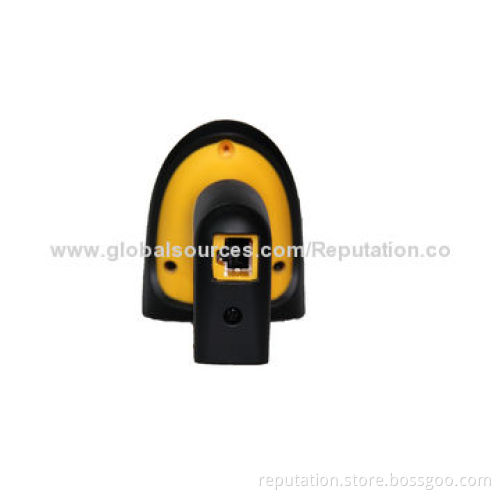

Interface type: RJ-45 crystal head
Hull materials: ABS + PC
Temperature: 0 to 50℃ (working): -40 to 60℃ (storage)
Setting mode: manual (scanning and setting barcodes according to the sequence)
Safety regulations: laser safety class: EN60825-1, class 1, state level-I laser safety standard
EMC: EN55022, EN55024
Electrical safety: EN60950-1
Packaging level: IP52
Anti-seismic capacity: this product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times
Package: color/natural
Color: yellow/gray/white

Light source type: visual lasing diode, the wavelength is 650mm

Trigger mode: manual

Scanning mode: single-line scanning

Scanning speed: 100 ±2 times/second

Resolution: ≥4-mil

Printing contrast ratio: the lowest reflectivity difference is 30％

Bit error rate: 1/5-million

Input voltage: 5V DC ±0.25

Power: 100mW (working): 400mW (momentary maximum)

Current: 20mA (working): 100mA (momentary maximum)

Standby current: <20mA

Light intensity: 3,000-12,000 Lux

Depth of field: 5-630mm

Scanning angle: ±60, 65, 42° (left and right, front and back, rotation)

Decoding capacity: UPC/EAN/JAN, UPC/EAN with supplemental, UCC/EAN 128, code 39, MSI, code11, code 39 full ASCII, code 39 tri optic, code 128, code 128 full ASCII, codabar, code93, discrete 2 of 5, IATA, RSS variants, codabar, Chinese 2 of 5,

International general dimensional barcodes, eg Interleaved 2/5, Interleaved 2 of 5, China postal service code and more

Promotion mode: buzzer and LED indicator

Cable interface: USB (standard): PS/2 and RS232 are selectable

External dimensions (L x W x H): 158*68*96mm

Weight: 200g (excluding cables)

Cable standard: straight line, 1m

Interface type: RJ-45 crystal head

Hull materials: ABS + PC

Temperature: 0 to 50℃ (working): -40 to 60℃ (storage)

Setting mode: manual (scanning and setting barcodes according to the sequence)

Safety regulations: laser safety class: EN60825-1, class 1, state level-I laser safety standard

EMC: EN55022, EN55024

Electrical safety: EN60950-1

Packaging level: IP52

Anti-seismic capacity: this product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times

Package: color/natural

Color: yellow/gray/white
