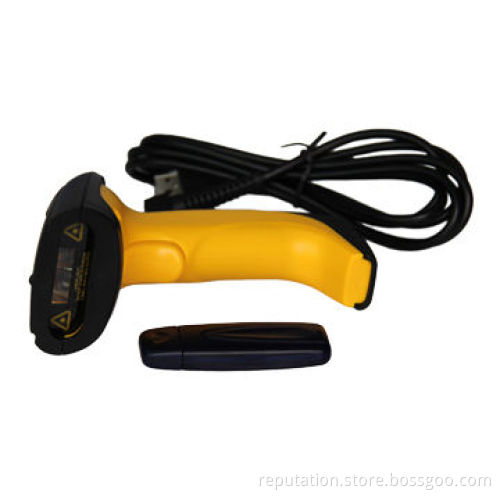

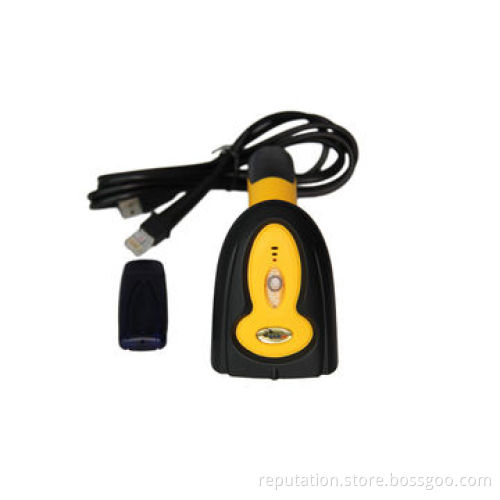

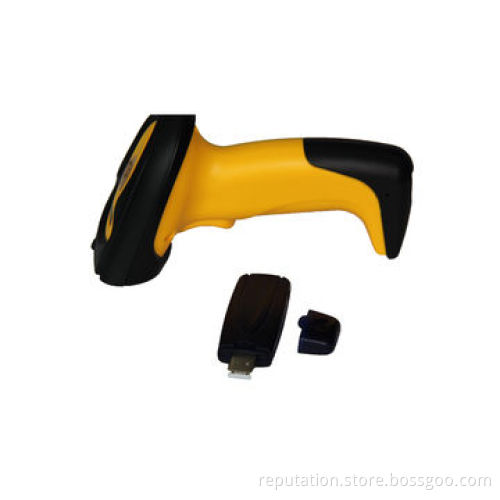

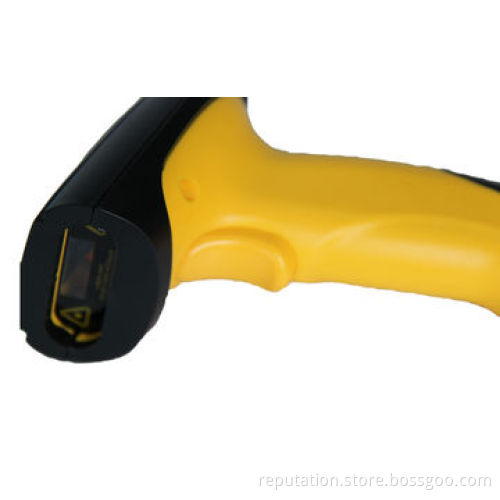

433MHz Laser Bar-code Scanner, Wireless, Scanner Reader

433MHz Laser Bar-code Scanner, Wireless, Scanner Reader

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Performance parameters

Type: YT880

Light source type: visual lasing diode; the wave length is 650mm.

Trigger mode: Manual

Scanning mode: Single-line scanning

Scanning speed: 100±2 times /s

Resolution: ≥4mil

Printing contrast ratio: The lowest reflectivity difference is 30％.

Bit error rate: 1/5000k

Input voltage: 5VDC±0.25V

Power: 100mW (Work): 400mW (momentary maximum)

Current: 20mA (Work): 100mA (momentary maximum)

Standby current: ＜20mA

Light intensity: 3000-12000Lux

Depth of field: 5mm-630mm

Scanning angle: ±60°±65°±42° (Left and right, front and back, rotation)

Decoding capacity:

UPC/EAN/JAN, UPC/EAN with Supplemental, UCC/EAN 128, Code 39,MSI,Code11, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code128FullASCII, Codabar, Code93, Discrete2of5, IATA, RSSvariants, Codabar, Chinese2of5, International general dimensional barcodes,e.g. Inteleaved2/5, Interleaved2of5, China postal service code and soon

Promotion mode: Buzzer and LED indicator

Cable interface: USB (standard): PS/2 and RS232 are selectable.

External dimensions: L*W*H: 158mm*68mm*96mm

Weight: 200g (excluding cables)

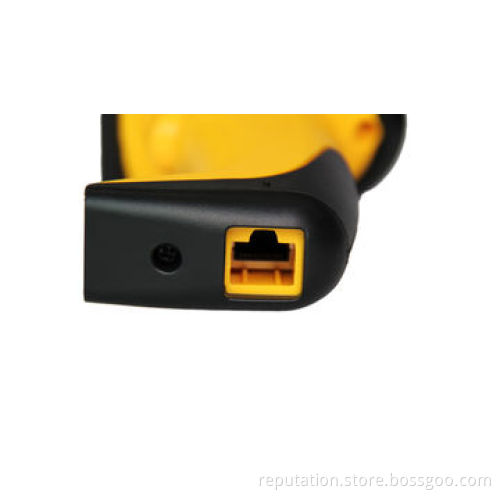

Interface type: RJ-45 crystal head

Hull material: ABS+PC

Temperature: 0℃ to 50℃ (Work): -40℃ to 60℃ (storage)

Setting mode: Manual (scanning and setting barcodes according to the sequence)

Safety regulations: Laser safety class: EN60825-1, Class 1, state level-I laser safety standard

EMC: EN55022,EN55024

Electrical safety: EN60950-1

Packaging level: IP52

Anti-seismic capacity: This product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times.

UPC/EAN/JAN, UPC/EAN with Supplemental, UCC/EAN 128, Code 39,MSI,Code11, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code128FullASCII, Codabar, Code93, Discrete2of5, IATA, RSSvariants, Codabar, Chinese2of5, International general dimensional barcodes,e.g. Inteleaved2/5, Interleaved2of5, China postal service code and soon
