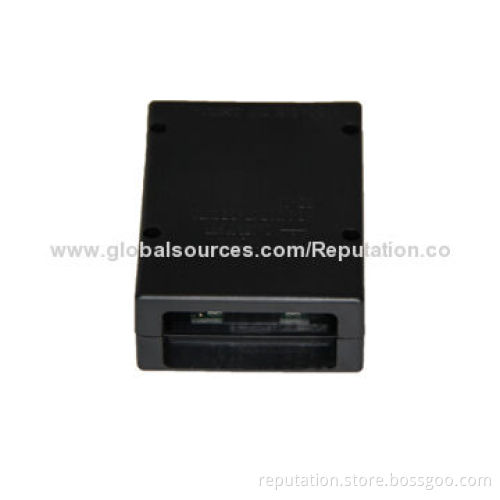

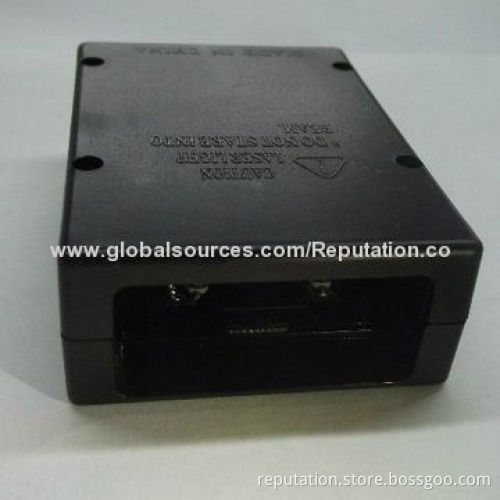

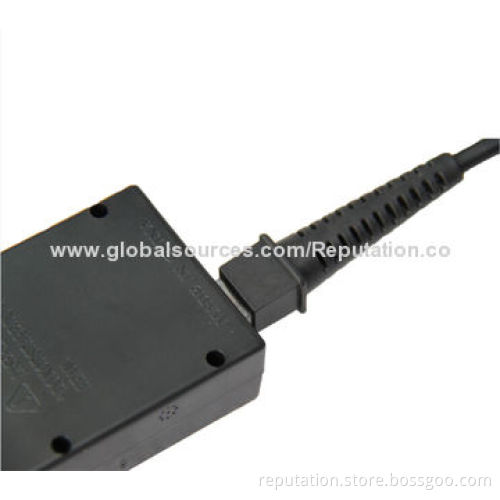

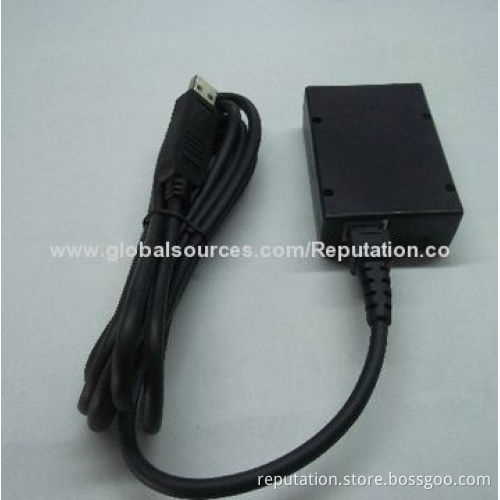

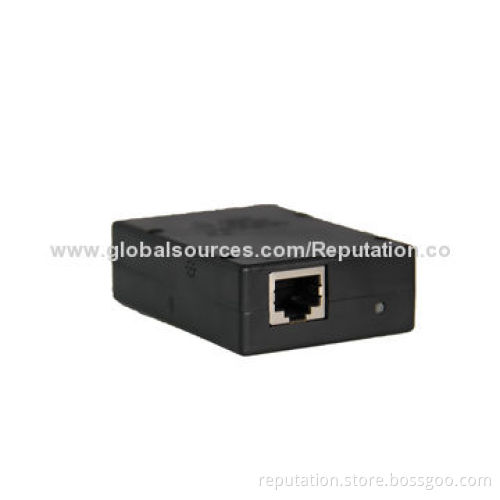

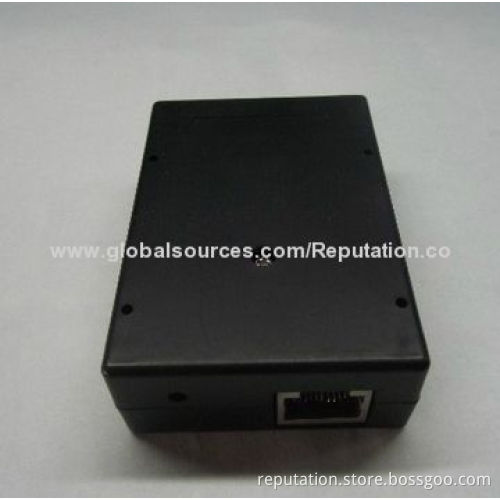

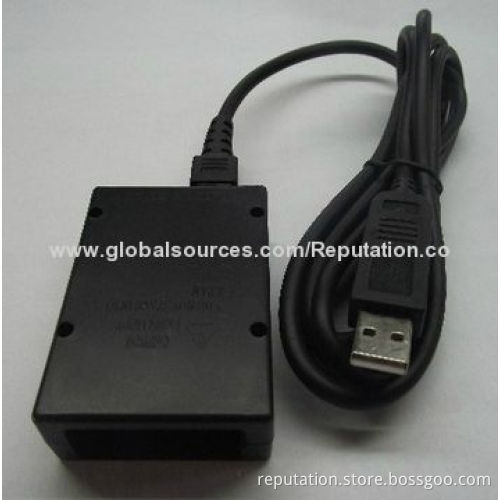

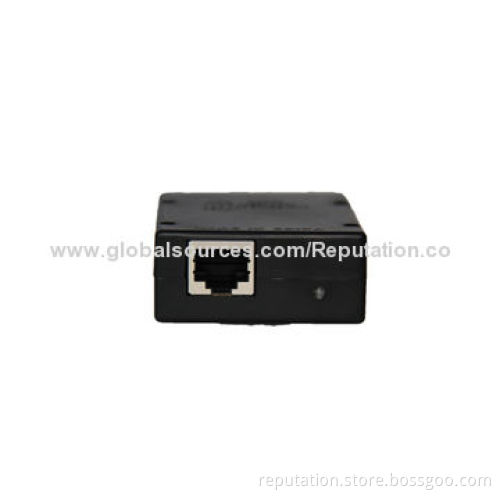

1D Laser Barcode Scanner, Platform Can Use as Fittings for Other Products

1D Laser Barcode Scanner, Platform Can Use as Fittings for Other Products

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Performance parameters:

Light source type: visual lasing diode, wavelength 650mm
Trigger mode: automatic (note: this trigger mode is the technology which researched and developed independently by our company, compare the automatic induction technology used in the domestic and overseas barcode scanner field, it's more convenient and reasonable)
Scanning mode: single-line scanning
Scanning speed: 100 ±2 times/second
Resolution: ≥4-mil
Printing contrast ratio: the lowest reflectivity difference is 30％
Bit error rate: 1/50 millions
Input voltage: 5V DC ±0.25V
Power: 325mW (working): 675mW (momentary maximum)
Current: 65mA (working): 135mA (momentary maximum)
Standby current: <100mA
Light intensity: 3,000-12,000 Lux
Depth of field: 5-630mm
Scanning angle: 60, 65 ±42° (left and right, front and back, rotation)
Decoding capacity: UPC/EAN/JAN, UPC/EAN with Supplemental, UCC/EAN 128, code39, MSI, code11
Code39 full ASCII, code39 Tropic, code128, code128Full ASCII
Codabar, code 93, Discrete 2 of 5, IATA, RSS variants, codabar, Chinese 2 of 5
International general dimensional barcodes, eg
Interleaved 2/5, Interleaved 2 of 5, China postal service code and more
Prompt mode: buzzer and LED indicator
Cable interface: USB (standard): PS/2 and RS232 are selectable
External dimensions (L*W*H): 70*50*22mm
Weight: 58g (excluding cables)
Cable standard: straight line, 1m
Interface type: RJ-45 crystal head
Hull materials: ABS + PC
Temperature: 0 to 50℃ (working): -40 to 60℃ (storage)
Setting mode: automatic (scanning and setting barcodes according to the sequence)
Safety regulations: laser safety class: EN60825-1, class 1, state level-I laser safety standard
EMC: EN55022, EN55024
Electrical safety: EN60950-1
Packaging level: IP52
Anti-seismic capacity: this product can still work properly after falling down and being impacted on the concrete floor from the height of 2m for many times
Package: color/neutral
Product color: black/yellow/gray/white

Light source type: visual lasing diode, wavelength 650mm

Trigger mode: automatic (note: this trigger mode is the technology which researched and developed independently by our company, compare the automatic induction technology used in the domestic and overseas barcode scanner field, it's more convenient and reasonable)

Scanning mode: single-line scanning

Scanning speed: 100 ±2 times/second

Resolution: ≥4-mil

Printing contrast ratio: the lowest reflectivity difference is 30％

Bit error rate: 1/50 millions

Input voltage: 5V DC ±0.25V

Power: 325mW (working): 675mW (momentary maximum)

Current: 65mA (working): 135mA (momentary maximum)

Standby current: <100mA

Light intensity: 3,000-12,000 Lux

Depth of field: 5-630mm

Scanning angle: 60, 65 ±42° (left and right, front and back, rotation)

Decoding capacity: UPC/EAN/JAN, UPC/EAN with Supplemental, UCC/EAN 128, code39, MSI, code11

Code39 full ASCII, code39 Tropic, code128, code128Full ASCII

Codabar, code 93, Discrete 2 of 5, IATA, RSS variants, codabar, Chinese 2 of 5

International general dimensional barcodes, eg

Interleaved 2/5, Interleaved 2 of 5, China postal service code and more

Prompt mode: buzzer and LED indicator

Cable interface: USB (standard): PS/2 and RS232 are selectable

External dimensions (L*W*H): 70*50*22mm

Weight: 58g (excluding cables)

Cable standard: straight line, 1m

Interface type: RJ-45 crystal head

Hull materials: ABS + PC

Temperature: 0 to 50℃ (working): -40 to 60℃ (storage)

Setting mode: automatic (scanning and setting barcodes according to the sequence)

Safety regulations: laser safety class: EN60825-1, class 1, state level-I laser safety standard

EMC: EN55022, EN55024

Electrical safety: EN60950-1

Packaging level: IP52

Anti-seismic capacity: this product can still work properly after falling down and being impacted on the concrete floor from the height of 2m for many times

Package: color/neutral

Product color: black/yellow/gray/white
