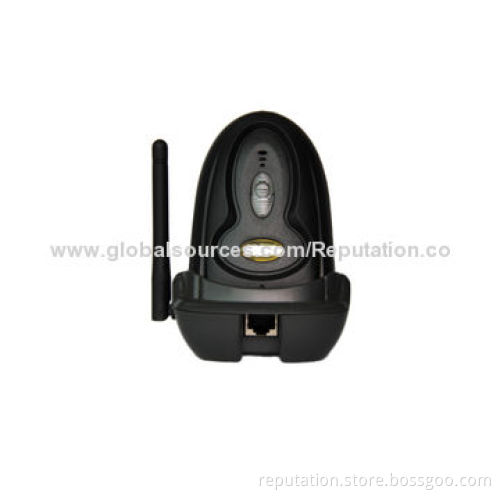

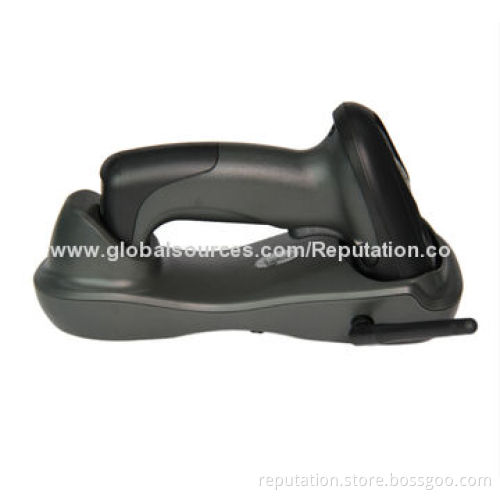

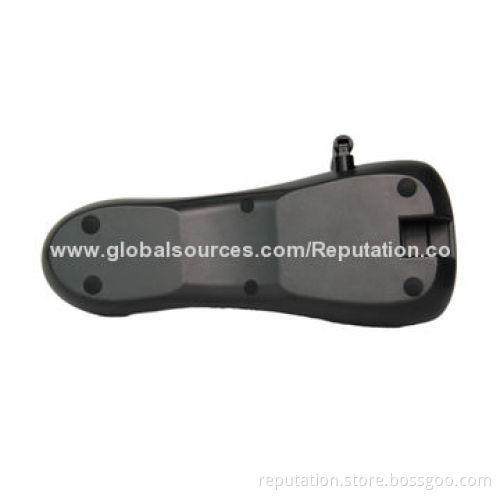

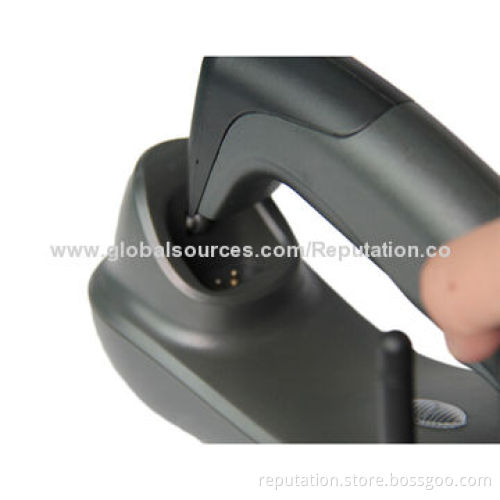

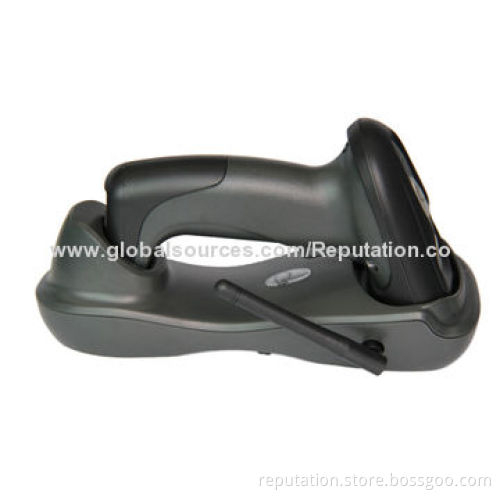

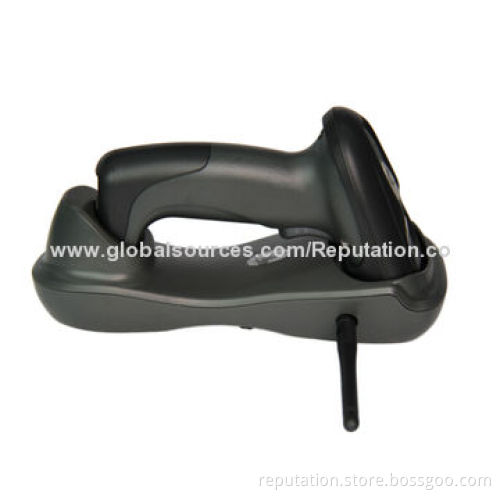

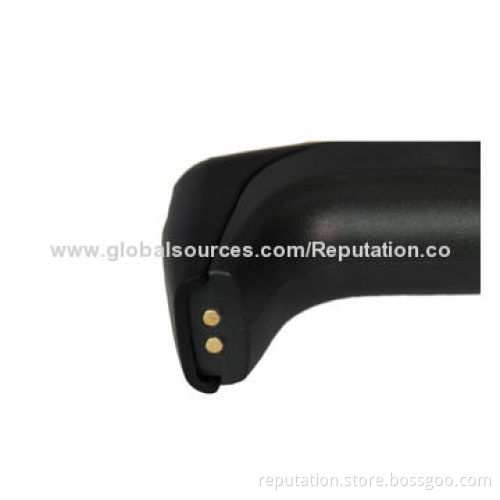

Charge Station 1D Wireless Bar-code Scanner, 360°, Rotate

Charge Station 1D Wireless Bar-code Scanner, 360°, Rotate

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Performance parameters:

Part number: YT900
Light source type visual lasing diode: the wave length is 650mm
Trigger mode: Manul
Scanning mode: Single-line scanning
Scanning speed: 100±2 times/s
Resolution: ≥4mil
Printing contrast ratio the lowest reflectivity difference is 30％
Bit error rate: 1/5million
Input voltage: 5VDC±0.25V
Power: 100mW (Work): 400mW (momentary maximum)
Current: 20mA (Work): 100mA (momentary maximum)
Standby current: ＜20mA
Light intensity: 3,000-12,000Lux
Depth of field: 5mm-630mm
Scanning angle ±60°±65°±42° (Left and right, front and back, rotation)
Decoding capacity UPC/EAN/JAN, UPC/EAN with Supplemental, UCC/EAN 128, Code 39, MSI, Code11
Code 39 full ASCII, Code 39 TriOptic, Code 128, Code 128Full ASCII
Codabar, Code93, Discrete2of5, IATA, RSS variants, Codabar, Chinese2of5,
International general dimensional barcodes, e.g. Inteleaved2/5, Interleaved2of5, China postal service code and so on
Promotion mode Buzzer and LED indicator
Cable interface USB (standard): PS/2 and RS232 are selectable
External dimensions L x W x H: 158mm x 68mm x 96mm
Weight: 400g
Cable standard: Straight line, 1m
Interface type RJ-45 crystal head
Hull material: ABS and PC
Temperature range 0℃ to 50℃ (Work): -40℃ to 60℃ (storage)
Setting mode manul (scanning and setting barcodes according to the sequence)
Safety regulations laser safety class: EN60825-1, Class 1, state level-I laser safety standard
EMC: EN55022, EN55024
Electrical safety: EN60950-1
Packaging level: IP52
Anti-seismic capacity: This product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times

Part number: YT900

Light source type visual lasing diode: the wave length is 650mm

Trigger mode: Manul

Scanning mode: Single-line scanning

Scanning speed: 100±2 times/s

Resolution: ≥4mil

Printing contrast ratio the lowest reflectivity difference is 30％

Bit error rate: 1/5million

Input voltage: 5VDC±0.25V

Power: 100mW (Work): 400mW (momentary maximum)

Current: 20mA (Work): 100mA (momentary maximum)

Standby current: ＜20mA

Light intensity: 3,000-12,000Lux

Depth of field: 5mm-630mm

Scanning angle ±60°±65°±42° (Left and right, front and back, rotation)

Decoding capacity UPC/EAN/JAN, UPC/EAN with Supplemental, UCC/EAN 128, Code 39, MSI, Code11

Code 39 full ASCII, Code 39 TriOptic, Code 128, Code 128Full ASCII

Codabar, Code93, Discrete2of5, IATA, RSS variants, Codabar, Chinese2of5,

International general dimensional barcodes, e.g. Inteleaved2/5, Interleaved2of5, China postal service code and so on

Promotion mode Buzzer and LED indicator

Cable interface USB (standard): PS/2 and RS232 are selectable

External dimensions L x W x H: 158mm x 68mm x 96mm

Weight: 400g

Cable standard: Straight line, 1m

Interface type RJ-45 crystal head

Hull material: ABS and PC

Temperature range 0℃ to 50℃ (Work): -40℃ to 60℃ (storage)

Setting mode manul (scanning and setting barcodes according to the sequence)

Safety regulations laser safety class: EN60825-1, Class 1, state level-I laser safety standard

EMC: EN55022, EN55024

Electrical safety: EN60950-1

Packaging level: IP52

Anti-seismic capacity: This product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times
