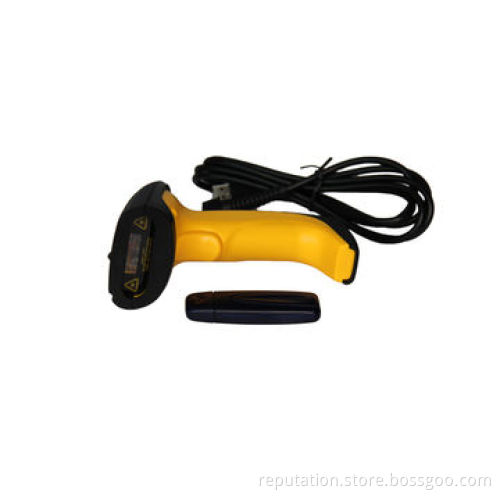

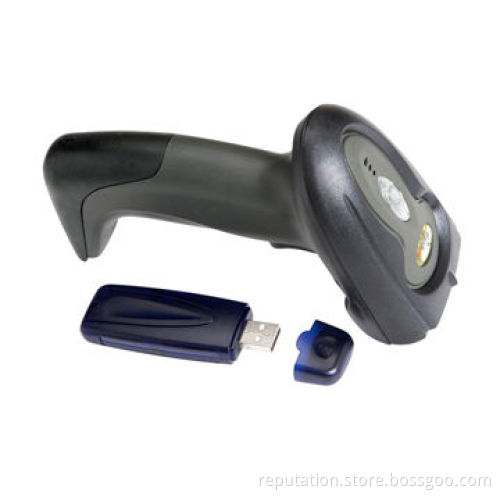

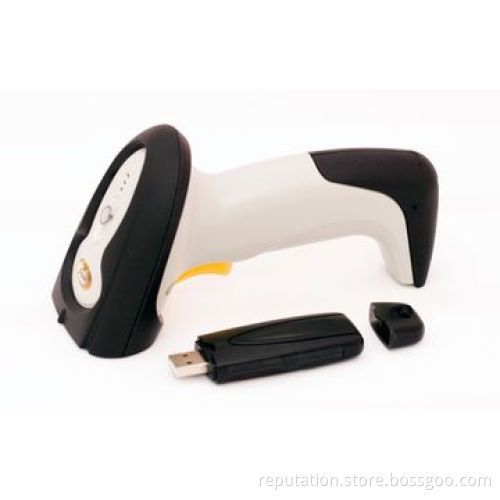

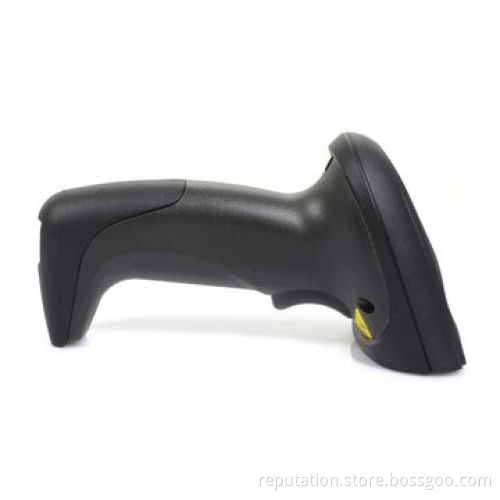

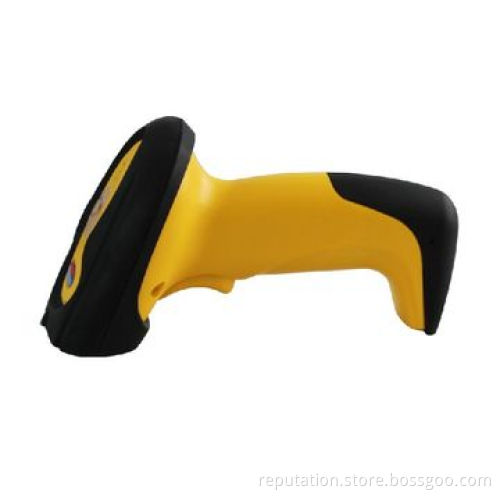

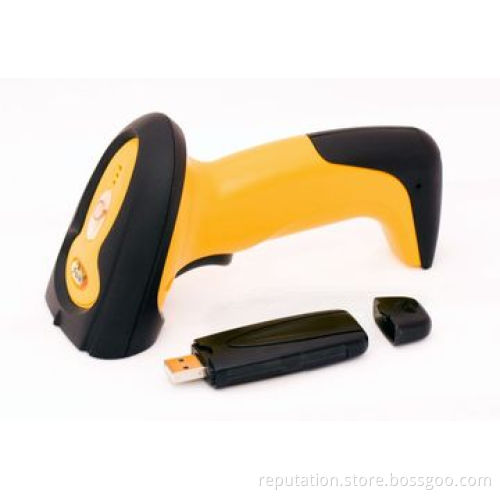

2.4G Laser Bar-code Scanner

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Performance parameters:

Light source type: Visual lasing diode; the wave length is 650mm
Trigger mode: Manul (can be switched off after the on/off button is pressed for several seconds)
Scanning pattern: Single-line scanning
Scanning speed: 100±2 times/s
Resolution: ≥4 mils
Printing contrast ratio: The lowest reflectivity difference is 30％
Bit error rate: 1/5 million
Charging input voltage: 5V DC ±0.25V
Power: 100mW (work), 500mW (momentary maximum)
Current: 20mA (work), 100mA (momentary maximum)
Standby current: <20mA
Light intensity: 3,000-12,000Lux
Depth of field 5-630mm
Scanning angle: ±60°±65°±42° (left and right, front and back, rotation)
Decoding capacity: UPC/EAN/JAN, UPC/EAN with supplemental, UCC/EAN 128, code 39, MSI, code11, code 39 full ASCII, Code 39 TriOptic, code 128, code 128Full ASCII, code-bar, code 93, discrete 2of5, IATA, RSS variants, code-bar, Chinese2of5, International general dimensional barcodes and more, inteleaved 2/5, interleaved 2of5, China postal service code and so on
Prompt mode: Buzzer and LED indicator
Receiving interface: RF is equipped with 2.4G bidirectional wireless digital transmission module
Weight: 200g
Charging interface type: RJ-45 crystal head, one meter long (equipped with 5V charger; the battery is being charged when the red light is on and fully charged when the green light is on)
Hull materials: ABS+PC
Temperatures: 0-50℃ (work), -40- 60℃ (storage)
Setting mode: Manual (scanning and setting barcodes according to the sequence)
Safety regulations: Laser safety class: EN60825-1, class 1, state level-I laser safety standard
EMC: EN55022,EN55024
Electrical safety: EN60950-1
Packaging level: IP52
Anti-seismic capacity: This product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times

Light source type: Visual lasing diode; the wave length is 650mm

Trigger mode: Manul (can be switched off after the on/off button is pressed for several seconds)

Scanning pattern: Single-line scanning

Scanning speed: 100±2 times/s

Resolution: ≥4 mils

Printing contrast ratio: The lowest reflectivity difference is 30％

Bit error rate: 1/5 million

Charging input voltage: 5V DC ±0.25V

Power: 100mW (work), 500mW (momentary maximum)

Current: 20mA (work), 100mA (momentary maximum)

Standby current: <20mA

Light intensity: 3,000-12,000Lux

Depth of field 5-630mm

Scanning angle: ±60°±65°±42° (left and right, front and back, rotation)

Decoding capacity: UPC/EAN/JAN, UPC/EAN with supplemental, UCC/EAN 128, code 39, MSI, code11, code 39 full ASCII, Code 39 TriOptic, code 128, code 128Full ASCII, code-bar, code 93, discrete 2of5, IATA, RSS variants, code-bar, Chinese2of5, International general dimensional barcodes and more, inteleaved 2/5, interleaved 2of5, China postal service code and so on

Prompt mode: Buzzer and LED indicator

Receiving interface: RF is equipped with 2.4G bidirectional wireless digital transmission module

Weight: 200g

Charging interface type: RJ-45 crystal head, one meter long (equipped with 5V charger; the battery is being charged when the red light is on and fully charged when the green light is on)

Hull materials: ABS+PC

Temperatures: 0-50℃ (work), -40- 60℃ (storage)

Setting mode: Manual (scanning and setting barcodes according to the sequence)

Safety regulations: Laser safety class: EN60825-1, class 1, state level-I laser safety standard

EMC: EN55022,EN55024

Electrical safety: EN60950-1

Packaging level: IP52

Anti-seismic capacity: This product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times
