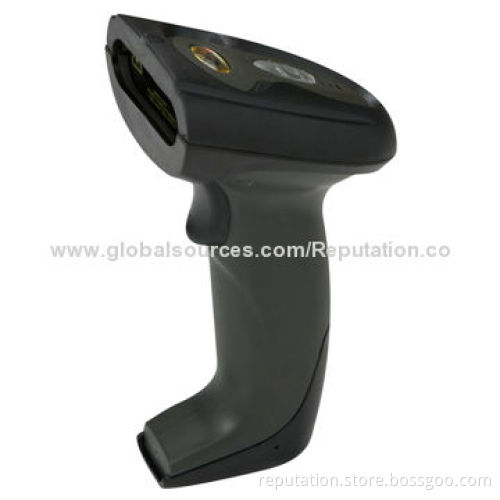

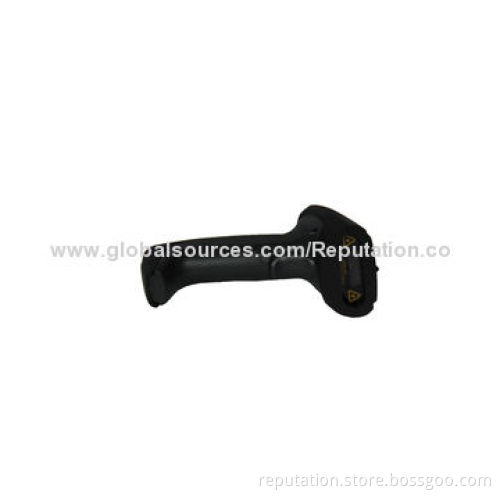

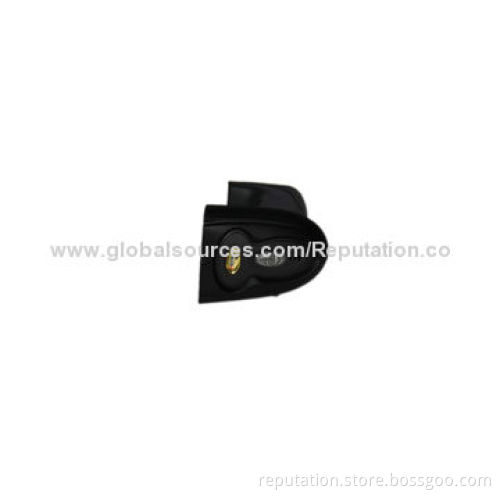

Wired laser bar-code scanner

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Parameters:

Light source type: laser, the wave length is 650mm
Trigger mode: Manual
Scanning mode: Single-line scanning
Scanning speed: 100±2 times/s
Scan precision: ≥4mil
Printing contrast ratio: The lowest reflectivity difference is 30％
Bit error rate: 1/50 million
Environment luminance range: 3,000-12,000Lux
Depth of fields: 5-630mm

Decoding capacity:

UPC/EAN/JAN, UPC/EAN with supplemental, UCC/EAN 128, code 39, MSI, code 11, Code 39 full ASCII, code 39 TriOptic, Code 128, Code 128 full ASCII codabar, code 93, discrete 2 of 5, IATA, RSS variants, codabar, Chinese 2 of 5, interleaved 2/5, interleaved 2 of 5, China postal service code and so on
Input voltage: 5V DCc±0.25V
Outside materials: ABS + PC
Anti-knock capacity: This product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times

Light source type: laser, the wave length is 650mm

Trigger mode: Manual

Scanning mode: Single-line scanning

Scanning speed: 100±2 times/s

Scan precision: ≥4mil

Printing contrast ratio: The lowest reflectivity difference is 30％

Bit error rate: 1/50 million

Environment luminance range: 3,000-12,000Lux

Depth of fields: 5-630mm

UPC/EAN/JAN, UPC/EAN with supplemental, UCC/EAN 128, code 39, MSI, code 11, Code 39 full ASCII, code 39 TriOptic, Code 128, Code 128 full ASCII codabar, code 93, discrete 2 of 5, IATA, RSS variants, codabar, Chinese 2 of 5, interleaved 2/5, interleaved 2 of 5, China postal service code and so on

Input voltage: 5V DCc±0.25V

Outside materials: ABS + PC

Anti-knock capacity: This product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times
