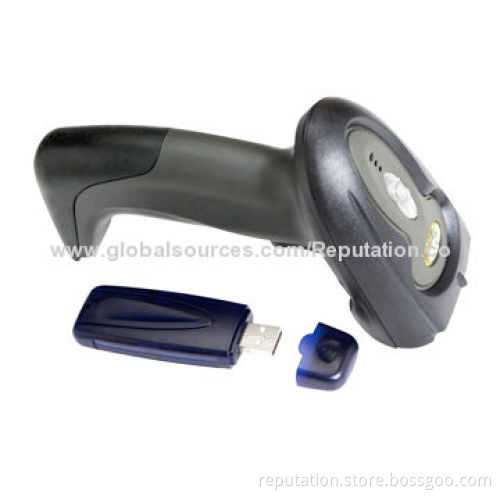

2.4GHz 1D Wireless Laser Barcode Scanner with <20mA Standby Current

2.4GHz 1D Wireless Laser Barcode Scanner with <20mA Standby Current

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Parameters:

Light source: type visual lasing diode & the wave length is 650mm
Trigger mode: manual (can be switched-off after the on/off button is pressed for several seconds)
Scanning pattern: single-line
Scanning speed: 100 ±2 times/second
Resolution: ≥4-mil
Printing contrast ratio: the low-reflectivity difference is 30％
Bit error rate: 1/50 million
Charging input voltage: 5V DC ±0.25V
Power: 100mW (work), 500mW (momentary maximum)
Current: 20mA (work), 100mA (momentary maximum)
Standby current: <20mA
Light intensity range: 3,000-12,000 Lux
Depth of field range: 5-630mm
Scanning angle: ±60/65/42° (left and right, front and back, rotation)
Decoding capacity: UPC/EAN/JAN, UPC/EAN with supplemental, UCC/EAN 128, code 39, MSI & code 11
Code 39 full ASCII, code 39 TriOptic, code 128, code 128 full ASCII
Codabar, code 93, Discrete 2 of 5, IATA, RSSV, codebar & Chinese 2 of 5
International general dimensional barcodes, example
Interleaved 2/5, Interleaved 2 of 5,China postal service code and more
Prompt mode: buzzer and LED indicator
Receiving interface: RF is equipped with 2.4GHz bidirectional wireless digital transmission module
Weight: 200g
Charging interface type: RJ45 crystal head, one meter long (equipped with 5V charger; the battery is being charged when the red light is on and fully charged when the green light is on)
Hull materials: ABS + PC
Temperatures: 0 to 50℃ (working), -40 to 60℃ (storage)
Setting mode: manual (scanning and setting barcodes according to the sequence)
Safety regulations laser safety class: EN60825-1, class 1, state level-I laser safety standard
EMC: EN55022, EN55024
Electrical safety: EN60950-1
Packaging level: IP52
Anti-seismic capacity: this product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times
Package: color/neutral
Colors: yellow/gray/white

Light source: type visual lasing diode & the wave length is 650mm

Trigger mode: manual (can be switched-off after the on/off button is pressed for several seconds)

Scanning pattern: single-line

Scanning speed: 100 ±2 times/second

Resolution: ≥4-mil

Printing contrast ratio: the low-reflectivity difference is 30％

Bit error rate: 1/50 million

Charging input voltage: 5V DC ±0.25V

Power: 100mW (work), 500mW (momentary maximum)

Current: 20mA (work), 100mA (momentary maximum)

Standby current: <20mA

Light intensity range: 3,000-12,000 Lux

Depth of field range: 5-630mm

Scanning angle: ±60/65/42° (left and right, front and back, rotation)

Decoding capacity: UPC/EAN/JAN, UPC/EAN with supplemental, UCC/EAN 128, code 39, MSI & code 11

Code 39 full ASCII, code 39 TriOptic, code 128, code 128 full ASCII

Codabar, code 93, Discrete 2 of 5, IATA, RSSV, codebar & Chinese 2 of 5

International general dimensional barcodes, example

Interleaved 2/5, Interleaved 2 of 5,China postal service code and more

Prompt mode: buzzer and LED indicator

Receiving interface: RF is equipped with 2.4GHz bidirectional wireless digital transmission module

Weight: 200g

Charging interface type: RJ45 crystal head, one meter long (equipped with 5V charger; the battery is being charged when the red light is on and fully charged when the green light is on)

Hull materials: ABS + PC

Temperatures: 0 to 50℃ (working), -40 to 60℃ (storage)

Setting mode: manual (scanning and setting barcodes according to the sequence)

Safety regulations laser safety class: EN60825-1, class 1, state level-I laser safety standard

EMC: EN55022, EN55024

Electrical safety: EN60950-1

Packaging level: IP52

Anti-seismic capacity: this product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times

Package: color/neutral

Colors: yellow/gray/white
