Product Description

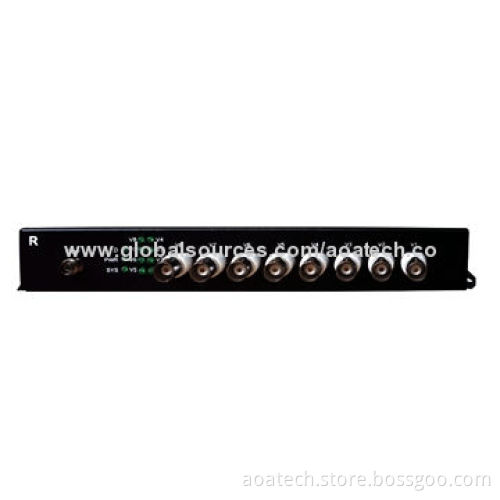

AOV-8V 8-channel multifunction video optical converter

Overview:

AOV-8V series multifunction video optic converter, adopt basic and additional function board design to ensure flexible configuration to match different CCTV project requirements
Basic PCB board with basic function as 4-ch video and 2ch RS485 data and 1-ch Ethernet
One additional function board for: 4-ch bi-di audio or 4-ch bi-di RS485/232 or 2-ch RS422 data or 4-ch bi-bi contact closure or 4-ch telephone, supports 4U rack

Features:

Standalone use or card type for 4U rack
8-bit digital code and non-compression type video transmission
Automatic compatible PAL, NTSC and SECAM video system
5Hz-10MHz video channel
Supports any high-resolution video signal
With APC circuit, constant input optical power, and large dynamic range
LED indicators for instant system monitoring
Supports no-damage regenerative trunk of video
Advanced self-adapting technology, and it is unnecessary to implement the adjustment of spot electrics or optics when using
Industry-grade design and modularization design make the equipment reliable and flexible
Automatically restore the fuse of power supply

Application:

Intelligence Traffic Monitor system (ITS)
Metro/High-speed way monitor system
Electric power/hydraulic safety monitor system
Industrial mining enterprises security system
Long-distance multimedia teaching/campus security
CATV long-distance transmission
Building automatic security system

AOV-8V series multifunction video optic converter, adopt basic and additional function board design to ensure flexible configuration to match different CCTV project requirements

Basic PCB board with basic function as 4-ch video and 2ch RS485 data and 1-ch Ethernet

One additional function board for: 4-ch bi-di audio or 4-ch bi-di RS485/232 or 2-ch RS422 data or 4-ch bi-bi contact closure or 4-ch telephone, supports 4U rack

Standalone use or card type for 4U rack

8-bit digital code and non-compression type video transmission

Automatic compatible PAL, NTSC and SECAM video system

5Hz-10MHz video channel

Supports any high-resolution video signal

With APC circuit, constant input optical power, and large dynamic range

LED indicators for instant system monitoring

Supports no-damage regenerative trunk of video

Advanced self-adapting technology, and it is unnecessary to implement the adjustment of spot electrics or optics when using

Industry-grade design and modularization design make the equipment reliable and flexible

Automatically restore the fuse of power supply

Intelligence Traffic Monitor system (ITS)
