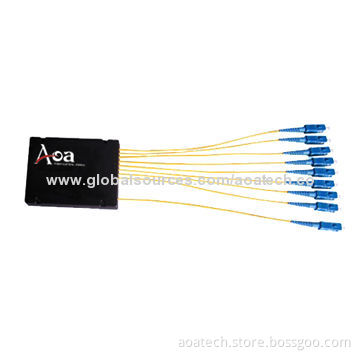

Fiber Splitter, 1 x 8 in Steel Tube with Compact Design and High-reliability

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Description:

Developed based on unique silica glass wave guide process with reliable precision aligned fiber pigtail in a miniature package
Provides a low-cost light distribution solution with small form factor and high-reliability
Devices have high-performance in terms of low-insertion loss, low PDL, high-return loss and excellent uniformity over a wide wavelength range from 1,260 to 1,620nm and working in temperature from -40 to +80°C
Standard configurations of 1 x 4, 1 x 8, 1 x 16 and 1 x 32 configurations, as well as customized structures of 2 x 8, 2 x 16 and 2 x 32

Features:

Compact design
Low-insertion loss and low PDL
High-reliability
High-channel counts
Wide wavelength range
Large operating temperature range
Customized packaging and configuration

Applications:

FTTX systems
LAN, WAN and metro networks
Analog/digital passive optical networks
CATV networks
Other applications in fiber optic systems

Technical index:

Channel number: 1 x 8
Operating wavelength: 1,260 to 1,650nm
Insertion loss: ≤10.8dB
Loss uniformity: ≤0.8dB
Polarization dependent loss: ≤0.3dB
Return loss: ≥50dB
Directivity: ≥55dB
Package dimensions: 60x7x4mm
Operating temperature: -40 to 85°C
Storage temperature: -40 to 85°C

Developed based on unique silica glass wave guide process with reliable precision aligned fiber pigtail in a miniature package

Provides a low-cost light distribution solution with small form factor and high-reliability

Devices have high-performance in terms of low-insertion loss, low PDL, high-return loss and excellent uniformity over a wide wavelength range from 1,260 to 1,620nm and working in temperature from -40 to +80°C

Standard configurations of 1 x 4, 1 x 8, 1 x 16 and 1 x 32 configurations, as well as customized structures of 2 x 8, 2 x 16 and 2 x 32

Compact design

Low-insertion loss and low PDL

High-reliability

High-channel counts

Wide wavelength range

Large operating temperature range

Customized packaging and configuration

FTTX systems

LAN, WAN and metro networks

Analog/digital passive optical networks

CATV networks
