Media Converter with Two 10/100/1,000M UTP Ports and Two 1,000M SFP Sockets

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

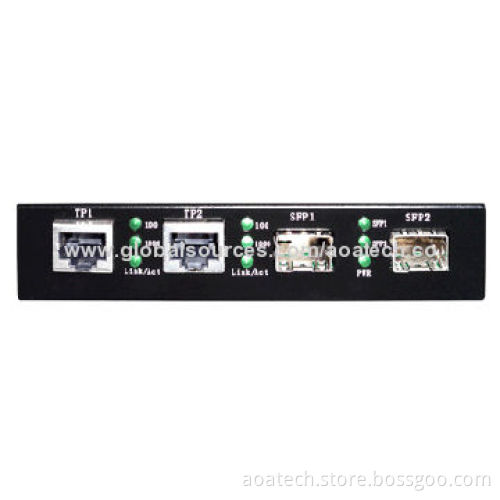

10/100/1,000M 2RJ45 + 2SFP media converter

10/100/1,000M Ethernet optical fiber switch with two 10/100/1000M UTP ports and two 1,000M SFP sockets

The end users can use different SFP modules according to his requirement, for example: 1000Base-T, 1000Base-SX, 1000Base-LX and more

Features:

Supports 10/100/1000Base-T and 1000Base-SX/LX standard
2 x RJ45 ports auto 10/100/1,000M
Flow control for full duplex and half-duplex
2 x SFP sockets support hot plug, all 1.25G SFP modules
Supports auto MDI/MDI-X function
Broadcast storm protection
Supporting the transmission of extra-long VLAN packets
Supporting quality of service (QoS) and ensuring the transmission of VoIP packets
Supports 10/100/1000Base-T, 100/1000Base-X protocol

Technical index:

Access mode: 10/100/1,000Mbps
Standard: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Base-TX, IEEE 802.3z 1000Base-FX, IEEE802.3x flow control
Wavelength: 850/1,310/1,550nm
Transmission distance:
Fiber-optic: depends on the SFP module
Category-5 twisted pair: 100m
Port:
- Two RJ45 ports: connecting with STP/UTP category-5 twisted pairs
- Two optical ports: LC (SFP module)
- Apple's Mac address table I K
Flow control:
- Full duplex: flow control
- Half duplex: back pressure
Power supply: 100-240V AC, 50-60Hz, 5V DC, 2A
Operating temperature: -10 to 55ºC
Operating humidity: 5-90% RH
Maintaining temperature: -40 to 70ºC
Maintaining humidity: 5-90% RH (non-condensing)
Size: 125 x 83 x 26mm
