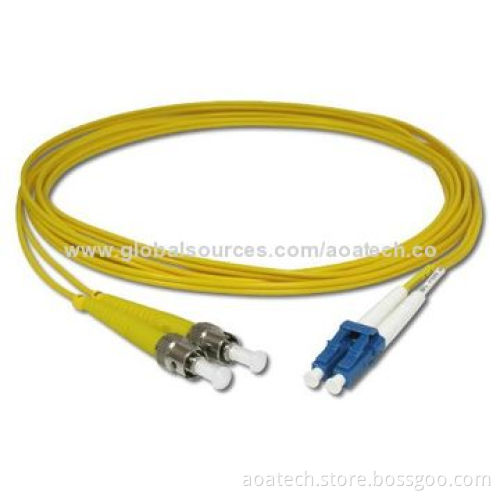

ST-LC patch cord, in simplex, duplex and mini zip, single mode(SM) and multiple mode(MM)New
  • ST-LC patch cord, in simplex, duplex and mini zip, single mode(SM) and multiple mode(MM)New
  • ST-LC patch cord, in simplex, duplex and mini zip, single mode(SM) and multiple mode(MM)New
ST-LC patch cord, in simplex, duplex and mini zip, single mode(SM) and multiple mode(MM)New
ST-LC patch cord, in simplex, duplex and mini zip, single mode(SM) and multiple mode(MM)New

ST-LC patch cord, in simplex, duplex and mini zip, single mode(SM) and multiple mode(MM)New

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Overview:
    • AOA offers a variety of ST-LC fiber optic patch cord in simplex, duplex and mini zip, single mode(SM) and multi mode(MM); The LC-ST patch cords assemblies that could be built to your specification. Please contact AOA for any custom specification patch cords.
  • Features:
    • Superior qualified standard PC/UPC/APC polishing
    • Compliant with Telcordia GR-326-core, TIA/EIA and IEC
    • 100% optic test (insertion loss & return loss)
    • 0.9mm, 2.0mm and 3.0mm cable optional
    • Simplex/duplex optional
    • Comply to IEC standard
    • Flexible boot are available
    • PVC/LSZH
  • Applications:
    • High speed and volume fiber optic transmission systems
    • CATV networks
    • LAN
    • Fiber optic instrumentation
  • Specifications:
    • Patch cord spec:
      • Type:
        • Single mode(UPC)
        • Single mode(APC)
        • Multi-mode (PC)
      • Insertion loss:
        • ≤0.3dB
        • ≤0.3dB
        • ≤0.3dB
      • Return loss:
        • ≥50dB
        • ≥60dB
        • ≥35dB
    • Repeatability: ≤0.1dB
    • Durability: ≥1,000 matings
    • Operating temperatures: -40-80ºC
    • Tensile strength(N): ≥90N (φ3), ≥70N (φ2)
  • AOA offers a variety of ST-LC fiber optic patch cord in simplex, duplex and mini zip, single mode(SM) and multi mode(MM); The LC-ST patch cords assemblies that could be built to your specification. Please contact AOA for any custom specification patch cords.
  • Superior qualified standard PC/UPC/APC polishing
  • Compliant with Telcordia GR-326-core, TIA/EIA and IEC
  • 100% optic test (insertion loss & return loss)
  • 0.9mm, 2.0mm and 3.0mm cable optional
  • Simplex/duplex optional
  • Comply to IEC standard
  • Flexible boot are available
  • PVC/LSZH
  • High speed and volume fiber optic transmission systems
  • CATV networks
  • LAN
  • Fiber optic instrumentation
  • Patch cord spec:
    • Type:
      • Single mode(UPC)
      • Single mode(APC)
      • Multi-mode (PC)
    • Insertion loss:
      • ≤0.3dB
      • ≤0.3dB
      • ≤0.3dB
    • Return loss:
      • ≥50dB
      • ≥60dB
      • ≥35dB
  • Repeatability: ≤0.1dB
  • Durability: ≥1,000 matings
  • Operating temperatures: -40-80ºC
  • Tensile strength(N): ≥90N (φ3), ≥70N (φ2)
  • Type:
    • Single mode(UPC)
    • Single mode(APC)
    • Multi-mode (PC)
  • Insertion loss:
    • ≤0.3dB
    • ≤0.3dB
    • ≤0.3dB
  • Return loss:
    • ≥50dB
    • ≥60dB
    • ≥35dB
  • Single mode(UPC)
  • Single mode(APC)
  • Multi-mode (PC)
  • ≤0.3dB
  • ≤0.3dB
  • ≤0.3dB
  • ≥50dB
  • ≥60dB
  • ≥35dB
