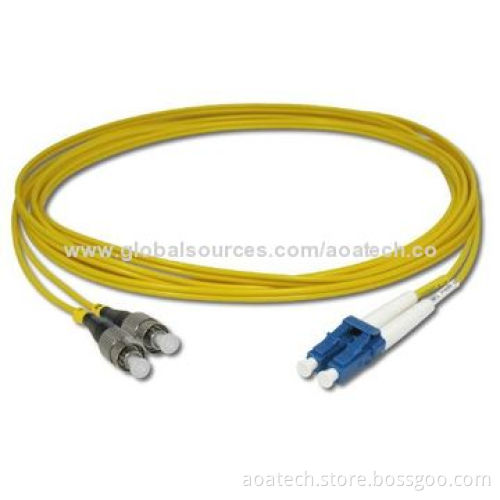

FC-LC patch cord, in simplex, duplex and mini zip, single mode(SM) and multi-mode (MM)New
  • FC-LC patch cord, in simplex, duplex and mini zip, single mode(SM) and multi-mode (MM)New
  • FC-LC patch cord, in simplex, duplex and mini zip, single mode(SM) and multi-mode (MM)New
FC-LC patch cord, in simplex, duplex and mini zip, single mode(SM) and multi-mode (MM)New
FC-LC patch cord, in simplex, duplex and mini zip, single mode(SM) and multi-mode (MM)New

FC-LC patch cord, in simplex, duplex and mini zip, single mode(SM) and multi-mode (MM)New

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • Superior qualified standard PC/UPC/APC polishing
    • Compliant with Telcordia GR-326-Core, TIA/EIA and IEC
    • 100% optic test (insertion loss & return loss)
    • 0.9mm, 2.0mm and 3.0mm cable optional
    • Simplex/duplex optional
    • Comply to IEC standard
    • Flexible boot are available
    • PVC/LSZH
  • Applications:
    • High Speed and volume fiber optic transmission systems
    • CATV networks
    • LAN
    • Fiber optic instrumentation
  • Specifications
    • Patch cord Spec
    • Type:
      • Single mode(UPC)
      • Single mode(APC)
      • Multi-mode (PC)
    • Insertion loss
      • ≤0.3 dB
      • ≤0.3 dB
      • ≤0.3 dB
    • Return Loss
      • ≥50 dB
      • ≥60 dB
      • ≥35 dB
    • Repeatability: ≤0.1dB
    • Durability: ≥1000matings
    • Operating temperatures: -40 ºC to +80 ºC
    • Tensile strength(N): ≥90N (φ3), ≥70N (φ2)
  • Superior qualified standard PC/UPC/APC polishing
  • Compliant with Telcordia GR-326-Core, TIA/EIA and IEC
  • 100% optic test (insertion loss & return loss)
  • 0.9mm, 2.0mm and 3.0mm cable optional
  • Simplex/duplex optional
  • Comply to IEC standard
  • Flexible boot are available
  • PVC/LSZH
  • High Speed and volume fiber optic transmission systems
  • CATV networks
  • LAN
  • Fiber optic instrumentation
  • Patch cord Spec
  • Type:
    • Single mode(UPC)
    • Single mode(APC)
    • Multi-mode (PC)
  • Insertion loss
    • ≤0.3 dB
    • ≤0.3 dB
    • ≤0.3 dB
  • Return Loss
    • ≥50 dB
    • ≥60 dB
    • ≥35 dB
  • Repeatability: ≤0.1dB
  • Durability: ≥1000matings
  • Operating temperatures: -40 ºC to +80 ºC
  • Tensile strength(N): ≥90N (φ3), ≥70N (φ2)
  • Single mode(UPC)
  • Single mode(APC)
  • Multi-mode (PC)
  • ≤0.3 dB
  • ≤0.3 dB
  • ≤0.3 dB
  • ≥50 dB
  • ≥60 dB
  • ≥35 dB
