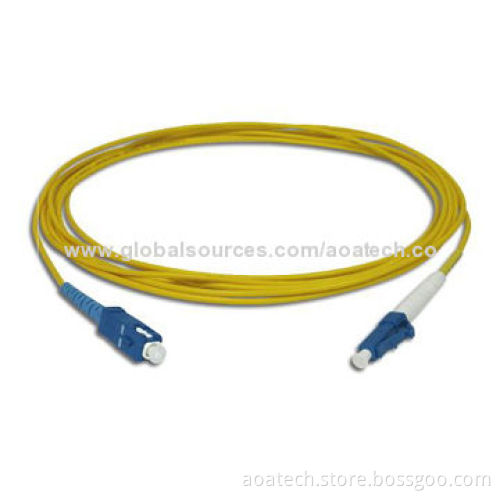

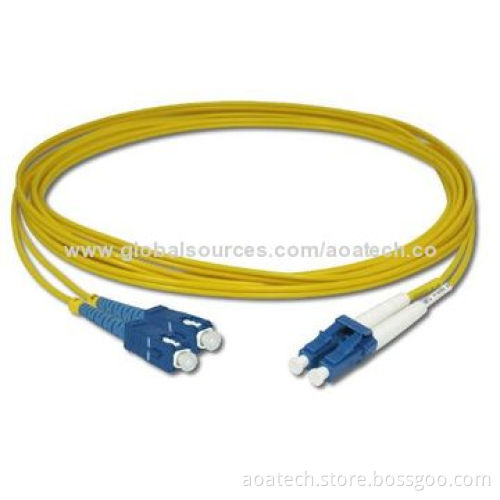

LC-SC patch cord, in simplex, duplex and mini zip, single mode(SM) and multi-mode (MM)New
  • LC-SC patch cord, in simplex, duplex and mini zip, single mode(SM) and multi-mode (MM)New
  • LC-SC patch cord, in simplex, duplex and mini zip, single mode(SM) and multi-mode (MM)New
LC-SC patch cord, in simplex, duplex and mini zip, single mode(SM) and multi-mode (MM)New
LC-SC patch cord, in simplex, duplex and mini zip, single mode(SM) and multi-mode (MM)New

LC-SC patch cord, in simplex, duplex and mini zip, single mode(SM) and multi-mode (MM)New

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Overview:
    • AOA offers a variety of SC-LC fiber optic patch cord in Simplex, Duplex and Mini Zip, single mode(SM) and multi mode(MM)
    • The LC-SC patch cords assemblies that could be built to your specification
    • Please contact AOA for any custom specification patch cords.
  • Features:
    • Superior qualified standard PC/UPC/APC polishing
    • Compliant with Telcordia GR-326-Core, TIA/EIA and IEC
    • 100% optic test (insertion loss & return loss)
    • 0.9mm, 2.0mm and 3.0mm cable optional
    • Simplex/duplex optional
    • Comply to IEC standard
    • Flexible boot are available
    • PVC/LSZH
  • Applications:
    • High speed and volume fiber optic transmission systems
    • CATV networks
    • LAN
    • Fiber optic instrumentation
  • Specifications:
    • Patch cord spec
    • Type
    • Single mode(UPC)
    • Single mode(APC)
    • Multi-mode (PC)
  • Insertion loss:
    • ≤0.3 dB
    • ≤0.3 dB
    • ≤0.3 dB
  • Return loss:
    • ≥50 dB
    • ≥60 dB
    • ≥35 dB
  • Repeatability:
    • ≤0.1dB
    • Durability
    • ≥1000matings
  • Operating temperatures:
    • -40 ºC to +80 ºC
    • Tensile strength(N)
    • ≥90N (φ3), ≥70N (φ2)
  • AOA offers a variety of SC-LC fiber optic patch cord in Simplex, Duplex and Mini Zip, single mode(SM) and multi mode(MM)
  • The LC-SC patch cords assemblies that could be built to your specification
  • Please contact AOA for any custom specification patch cords.
  • Superior qualified standard PC/UPC/APC polishing
  • Compliant with Telcordia GR-326-Core, TIA/EIA and IEC
  • 100% optic test (insertion loss & return loss)
  • 0.9mm, 2.0mm and 3.0mm cable optional
  • Simplex/duplex optional
  • Comply to IEC standard
  • Flexible boot are available
  • PVC/LSZH
  • High speed and volume fiber optic transmission systems
  • CATV networks
  • LAN
  • Fiber optic instrumentation
  • Patch cord spec
  • Type
  • Single mode(UPC)
  • Single mode(APC)
  • Multi-mode (PC)
  • ≤0.3 dB
  • ≤0.3 dB
  • ≤0.3 dB
  • ≥50 dB
  • ≥60 dB
  • ≥35 dB
  • ≤0.1dB
  • Durability
  • ≥1000matings
  • -40 ºC to +80 ºC
  • Tensile strength(N)
  • ≥90N (φ3), ≥70N (φ2)
