Fiber Cable Connectors with High-reliability and Stability Feature
  • Fiber Cable Connectors with High-reliability and Stability Feature
  • Fiber Cable Connectors with High-reliability and Stability Feature
Fiber Cable Connectors with High-reliability and Stability Feature
Fiber Cable Connectors with High-reliability and Stability Feature

Fiber Cable Connectors with High-reliability and Stability Feature

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description

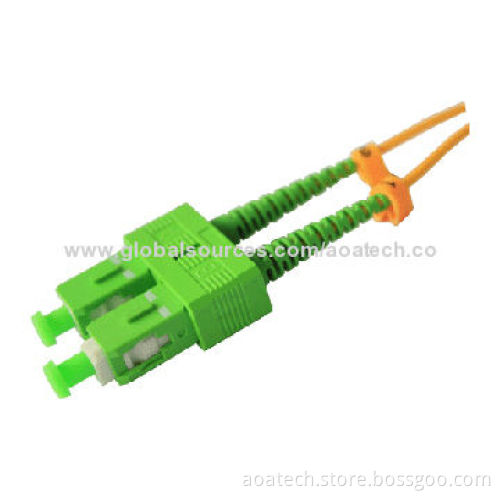

  • Stands for subscriber connector general purpose push/pull style connector developed by NTT SC has advantage in duplexibility to support send/receive channels
  • Frequently used for newer network applications
  • Connector is snap-in connector that is widely used in single-mode systems for performance
  • Available in duplex configuration
  • Square, snap-in connector latches with simple push-pull motion and is keyed
  • They feature 2.5mm ferrule and molded housing for protection
  • Features:
    • Superior qualified standards: PC/UPC/APC polishing
    • Compliant with Telcordia GR-326-core, TIA/EIA and IEC
    • 100% optic test (insertion loss and return loss)
    • 0.9, 2.0 and 3.0mm cable (optional)
    • Simplex/duplex (optional)
    • Comply to IEC standard
    • Flexible boot is available
    • PVC/LSZH
  • Applications:
    • High speed and volume fiber-optic transmission systems
    • CATV networks
    • LAN
    • Fiber-optic instrumentation
  • Specifications:
    • Types: single-mode (UPC, APC) and multi-mode (PC)
    • Insertion loss: ≤0.2, 0.2 and 0.3dB
    • Return loss: ≥50, 60 and 35dB
    • Repeatability: ≤0.1dB
    • Durability: ≥1,000 mating
    • Operating temperature: -40 to +80°C
  • Tensile strength:
    • ≥90N: Φ3
    • ≥70N: Φ2
  • Superior qualified standards: PC/UPC/APC polishing
  • Compliant with Telcordia GR-326-core, TIA/EIA and IEC
  • 100% optic test (insertion loss and return loss)
  • 0.9, 2.0 and 3.0mm cable (optional)
  • Simplex/duplex (optional)
  • Comply to IEC standard
  • Flexible boot is available
  • PVC/LSZH
  • High speed and volume fiber-optic transmission systems
  • CATV networks
  • LAN
  • Fiber-optic instrumentation
  • Types: single-mode (UPC, APC) and multi-mode (PC)
  • Insertion loss: ≤0.2, 0.2 and 0.3dB
  • Return loss: ≥50, 60 and 35dB
  • Repeatability: ≤0.1dB
  • Durability: ≥1,000 mating
  • Operating temperature: -40 to +80°C
  • ≥90N: Φ3
  • ≥70N: Φ2
