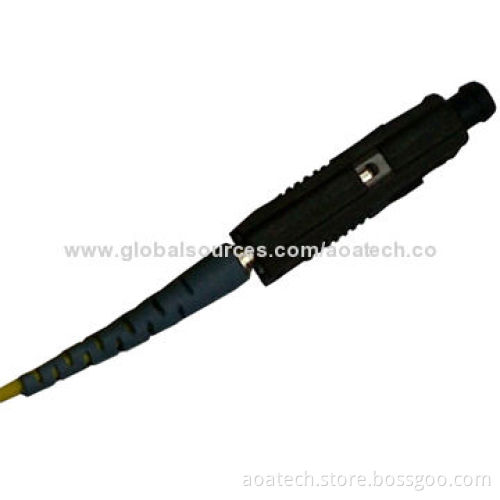

MU Fiber Optic Connector with High Reliability and Stability FeatureNew
  • MU Fiber Optic Connector with High Reliability and Stability FeatureNew
  • MU Fiber Optic Connector with High Reliability and Stability FeatureNew
MU Fiber Optic Connector with High Reliability and Stability FeatureNew
MU Fiber Optic Connector with High Reliability and Stability FeatureNew

MU Fiber Optic Connector with High Reliability and Stability FeatureNew

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Overview:
    • MU fiber optic patch cord is small form factor SC
    • Same push/pull style, but can fit 2 channels in the samefootprint of single SC
    • MU was developed by NTT
    • MU connector looks miniature SC with 1.25mm ferrule
    • Popular connector type in Japan
  • Features:
    • Superior qualified standard PC/UPC/APC polishing
    • 100% optic test (insertion loss and return loss)
    • 0.9, 2.0 and 3.0mm cable optional
    • Standard: IEC
  • Applications:
    • High speed and volume fiber optic transmission systems
    • CATV networks
    • LAN: fiber optic instrumentation
  • Specifications:
    • Type single-mode (UPC) and multi-mode (PC)
    • Insertion loss: ≤0.2 and ≤0.2dB
    • Return loss: ≥50dB ≥35dB
    • Repeatability: ≤0.1dB
    • Durability: ≥500 matings
    • Operating temperatures: -40 to +80°C
    • Tensile strength: ≥70N (Ψ3) and≥70N (Ψ2)
  • MU fiber optic patch cord is small form factor SC
  • Same push/pull style, but can fit 2 channels in the samefootprint of single SC
  • MU was developed by NTT
  • MU connector looks miniature SC with 1.25mm ferrule
  • Popular connector type in Japan
  • Superior qualified standard PC/UPC/APC polishing
  • 100% optic test (insertion loss and return loss)
  • 0.9, 2.0 and 3.0mm cable optional
  • Standard: IEC
  • High speed and volume fiber optic transmission systems
  • CATV networks
  • LAN: fiber optic instrumentation
  • Type single-mode (UPC) and multi-mode (PC)
  • Insertion loss: ≤0.2 and ≤0.2dB
  • Return loss: ≥50dB ≥35dB
  • Repeatability: ≤0.1dB
  • Durability: ≥500 matings
  • Operating temperatures: -40 to +80°C
  • Tensile strength: ≥70N (Ψ3) and≥70N (Ψ2)
