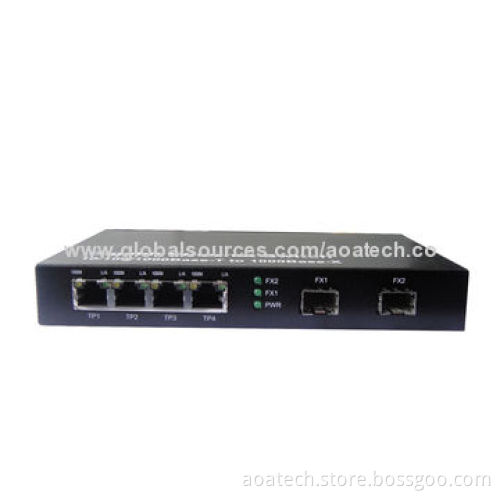

Optical Media Converter with Four 10/100/1,000M UTP RJ45 Ports and 21,000M SFP Socket

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

With 4 RJ45 ports and 2 SFP sockets, can convert optical electric Ethernet signals between 10/100/1,000M UTP ports
1,000M optical fiber ports and Ethernet signals switch between port
Auto negotiation function supports UTP ports to auto 10/100/1,000M and full/half duplex
Supporting the transmission of extra long WLAN packets
With SFP slot so that the user can change the converters' function at their choice, such as the working distances

Specifications:

Access mode: 10/100/1,000Mbps
Wavelength: 850, 1,310 or 1,550nm
Transmission distance of fiber optic: depends on SFP module, category-5 twisted pair and 100M
Ports: 4 RJ45 (connecting with STP/UTP category 5 twisted pairs)
Two optical: LC (SFP module)
MAC address table: I K
Full duplex: flow control
Half duplex: back pressure
Power supply: 5V DC or 3A
Operating temperature: 0 to 60°C
Humidity: 5 to 90%RH (non-condensing)
Standards: IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-TX, IEEE802.3z 1000Base-FX and IEEE802.3x flow control

With 4 RJ45 ports and 2 SFP sockets, can convert optical electric Ethernet signals between 10/100/1,000M UTP ports

1,000M optical fiber ports and Ethernet signals switch between port

Auto negotiation function supports UTP ports to auto 10/100/1,000M and full/half duplex

Supporting the transmission of extra long WLAN packets

With SFP slot so that the user can change the converters' function at their choice, such as the working distances

Access mode: 10/100/1,000Mbps

Wavelength: 850, 1,310 or 1,550nm

Transmission distance of fiber optic: depends on SFP module, category-5 twisted pair and 100M

Ports: 4 RJ45 (connecting with STP/UTP category 5 twisted pairs)

Two optical: LC (SFP module)

MAC address table: I K

Full duplex: flow control

Half duplex: back pressure

Power supply: 5V DC or 3A

Operating temperature: 0 to 60°C
Humidity: 5 to 90%RH (non-condensing)

Standards: IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-TX, IEEE802.3z 1000Base-FX and IEEE802.3x flow control
