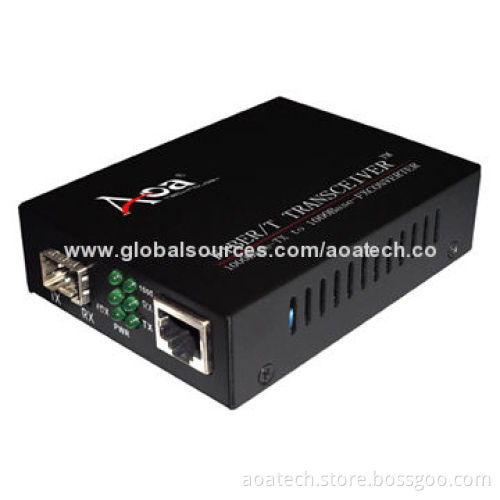

SFP Media Converter with SFP Socket for Main Brand SFP ModulesNew

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Overview: AOM-2100-F series 1000M Ethernet media converter complies with IEEE802.3/ab Gigabit Ethernet standard

Supports two types of media network connections: 1,000Base-T to 1000Base-SX/LX

Features:

Full- and half-duplex auto-sensed
Supports automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
Supports the transmission of extra-long VLAN packets
Supports quality of service (QoS) and ensuring the transmission of VoIP packets
Supports STP to form a redundant network
Compliant with IEEE1000Base-T and 1000Base-SX/LC
Optional 19-inch system chassis with double power supply
SFP socket for main brand SFP modules

Applications: 1,000Mbps Gigabit optical Ethernet long-distance transmitting network

Technical index:

Access mode: 10/100/1,000Mbps Gigabit Ethernet
Standards: IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1qVLAN, IEEE802.1p QoS, IEEE802.1dspanning tree
Transmission distance: up to SFP modules
Ports:
- 1 x RJ45 connector: connected to STP/UTP category-5 twisted pair
- 1 x SFP slot
Conversion means: media conversion
Delay: <10us
BER: <10-9
MTBF: 100,000 hours
LED: PWR (power supply), FX link (optical link action), TP link 1000 (twisted pair link 1000M), TP link 100 (twisted pair link100M), TP ACT (twisted pair packet forwarding)
Power supply: 220V AC, 0.5A/48V DC (built-in)
Power consumption: 5W
Operating temperature: -10-55ºC
Operating humidity range: 5-90% RH
Maintaining temperature: -40-70ºC
Maintaining humidity range: 5-90% RH non-condensing
External dimensions: 94 x 71 x 26mm

Full- and half-duplex auto-sensed

Supports automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation

Supports the transmission of extra-long VLAN packets

Supports quality of service (QoS) and ensuring the transmission of VoIP packets

Supports STP to form a redundant network

Compliant with IEEE1000Base-T and 1000Base-SX/LC

Optional 19-inch system chassis with double power supply

SFP socket for main brand SFP modules

Access mode: 10/100/1,000Mbps Gigabit Ethernet

Standards: IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1qVLAN, IEEE802.1p QoS, IEEE802.1dspanning tree

Transmission distance: up to SFP modules

Ports:

1 x RJ45 connector: connected to STP/UTP category-5 twisted pair
1 x SFP slot

Conversion means: media conversion

Delay: <10us

BER: <10-9

MTBF: 100,000 hours

LED: PWR (power supply), FX link (optical link action), TP link 1000 (twisted pair link 1000M), TP link 100 (twisted pair link100M), TP ACT (twisted pair packet forwarding)

Power supply: 220V AC, 0.5A/48V DC (built-in)

Power consumption: 5W

Operating temperature: -10-55ºC

Operating humidity range: 5-90% RH

Maintaining temperature: -40-70ºC

Maintaining humidity range: 5-90% RH non-condensing

External dimensions: 94 x 71 x 26mm

1 x RJ45 connector: connected to STP/UTP category-5 twisted pair

1 x SFP slot
