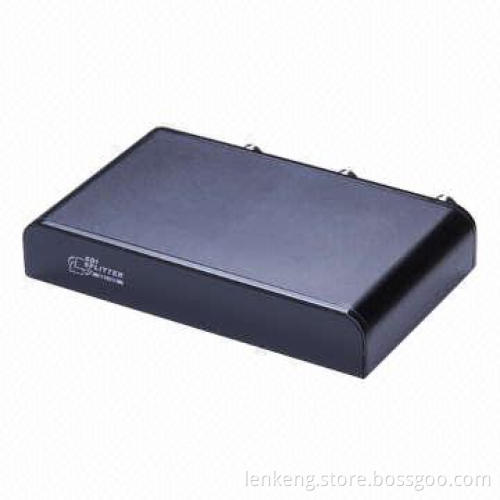

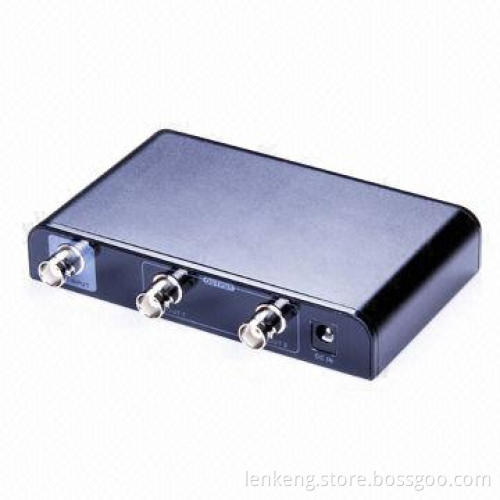

2 ports SDI splitter, supports SD-SDI, HD-SDI and 3G-SDI video format

2 ports SDI splitter, supports SD-SDI, HD-SDI and 3G-SDI video format

Get Latest Price

Payment Type:: T/T, PayPal, L/C or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, L/C or Western Union

Product Description

Compact SDI splitter is with a series of advanced technology

With build-in broadcast splitter chipset scheme and distributes SDI signal to 2 identical and synchronized SDI outputs perfectly

Supports SD-SDI (270Mbps), HD-SDI (1.485Gbps) and 3G-SDI (2.97Gbps) video format

LKV612 adopts aluminum alloy material to enhance the signal shield and achieve better video conversion effect

Benefits from the aluminum material quick heat dispelling, LKV612 can work stable 24x7 non-stop

LKV612 SDI splitter is with industrial level wide voltage design

Service lifespan can be up to 87600 hours. 5V-30V wide voltage input

Users can connect the nearest power input and it works stable

With built-in cable equalizer, reclocker and cable driver, supports the maximum cable length (Bleden-B6194A): SDI input and output length support: SDI for 400m, HD for 200m and 3G for 100m

Plug and play (no software needed) and can auto detect SDI signal

Indicator LED turns blue when correct SDI signal inputs, turns red when no signal or incorrect signal inputs, allowing users to find out problem easily
