SDI to HDMI Converter

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Description:

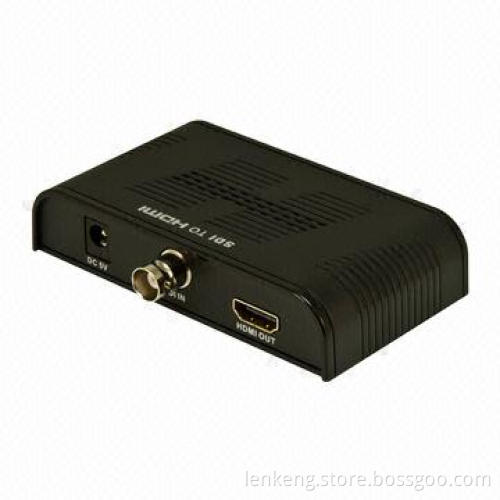

LKV368 SDI to HDMI converter converts SDI or HD-SDI to HDMI for driving HDMI monitors. LKV368 SDI to HDMI Converter is just for video format conversion and doesn’t change resolution. It is with high-quality picture output and fast transmission and is an easy and cost-effective solution for SDI to HDMI conversion. Audio output is integrated in to the HDMI output

Features:

Input: SDI x 1
Output: HDMI x 1
Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI
Full HDMI supported with embedded audio
Synchronized output audio video and audio
Plug-and-play function

Specifications:

SDI input:
- Format: Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI
- Date rate: 270Mb/s, 1.485Gb/s, 2.97Gb/s
- Impedance: 75Ω
- Receive ability: SD-SDI signal is as far as 460 meters away, HD-SDI is as far as 230 meters away
- Resolution: SD 525i, 625i; HD720P@24HZ, 720P@25HZ, 720P@30HZ, 720P@50HZ, 720P@60HZ, HD 1080i@50HZ, 1080i@60HZ, HD 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ and 1080P@60HZ
- Audio: 48KHz digital audio
Power: DC 5V/1A
Working currency is less than 400 milliampere

LKV368 SDI to HDMI converter converts SDI or HD-SDI to HDMI for driving HDMI monitors. LKV368 SDI to HDMI Converter is just for video format conversion and doesn’t change resolution. It is with high-quality picture output and fast transmission and is an easy and cost-effective solution for SDI to HDMI conversion. Audio output is integrated in to the HDMI output

Input: SDI x 1

Output: HDMI x 1

Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI

Full HDMI supported with embedded audio

Synchronized output audio video and audio

Plug-and-play function

SDI input:

Format: Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI
Date rate: 270Mb/s, 1.485Gb/s, 2.97Gb/s
Impedance: 75Ω
Receive ability: SD-SDI signal is as far as 460 meters away, HD-SDI is as far as 230 meters away
Resolution: SD 525i, 625i; HD720P@24HZ, 720P@25HZ, 720P@30HZ, 720P@50HZ, 720P@60HZ, HD 1080i@50HZ, 1080i@60HZ, HD 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ and 1080P@60HZ
Audio: 48KHz digital audio

Power: DC 5V/1A

Working currency is less than 400 milliampere

Format: Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI

Date rate: 270Mb/s, 1.485Gb/s, 2.97Gb/s

Impedance: 75Ω

Receive ability: SD-SDI signal is as far as 460 meters away, HD-SDI is as far as 230 meters away

Resolution: SD 525i, 625i; HD720P@24HZ, 720P@25HZ, 720P@30HZ, 720P@50HZ, 720P@60HZ, HD 1080i@50HZ, 1080i@60HZ, HD 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ and 1080P@60HZ

Audio: 48KHz digital audio
