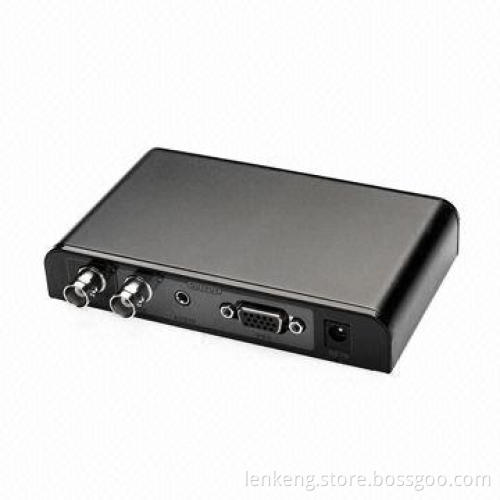

SDI to VGA Converter with One More SDI Output, Auto-video Mode Detection
  • SDI to VGA Converter with One More SDI Output, Auto-video Mode Detection
  • SDI to VGA Converter with One More SDI Output, Auto-video Mode Detection
SDI to VGA Converter with One More SDI Output, Auto-video Mode Detection
SDI to VGA Converter with One More SDI Output, Auto-video Mode Detection

SDI to VGA Converter with One More SDI Output, Auto-video Mode Detection

Get Latest Price
Payment Type:
T/T, PayPal, L/C or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, PayPal, L/C or Western Union
Product Description
Product Description
  • Description:
    • The SDI to SDI + VGA converter is designed to convert3G/HD/SD-SDI to VGA based equipment such as projectors, plasma TV,and LCD screens and more
    • Furthermore, thanks to the loop-through SDI design, users areable to enjoy both SDI and VGA displays at the same time
  • Specifications:
    • Operating at 2.970, 2.970/1.001, 1.485, 1.485/1.001 and270Mbps
    • Supports SMPTE 425M (level A and level B), SMPTE 424M, SMPTE292M, SMPTE 259M-C
    • Auto video mode detection (3G/SD/HD)
    • Cascade multiple units for extending the signal longerdistance
    • Simultaneous display with SDI and HDMI® signal
    • Frequency bandwidth: 225MHz/link (HDMI® 1.3)
    • SDI input:
      • SD-SDI: 480i at 60Hz, 576I at 50Hz
      • HD-SDI: 720P at 50/60Hz, 1,080i at 50/60Hz, 1,080P at 24, 25,30Hz
      • 3G-SDI: 1,080P at 50/60Hz
    • SDI output (bypass):
      • SD-SDI: 480i at 60Hz, 576i at 50Hz
      • HD-SDI: 720P at 50/60Hz, 1,080i at 50/60Hz, 1,080P at 24, 25,30Hz
      • 3G-SDI: 1,080P at 50/60Hz
    • VGA output:
      • 800 x 600 at 60Hz, 1,024 x 768 at 60Hz
      • 1,280 x 720 at 60Hz, 1,360 x 768 at 60Hz, 1,920 x 1,080 at60Hz
    • Chassis materials: aluminum and crystal plate
    • Power adapter: 5V 1A, recommend 12V 1A if acceptable
    • Dimensions: 130 x 77 x 24mm
  • The SDI to SDI + VGA converter is designed to convert3G/HD/SD-SDI to VGA based equipment such as projectors, plasma TV,and LCD screens and more
  • Furthermore, thanks to the loop-through SDI design, users areable to enjoy both SDI and VGA displays at the same time
  • Operating at 2.970, 2.970/1.001, 1.485, 1.485/1.001 and270Mbps
  • Supports SMPTE 425M (level A and level B), SMPTE 424M, SMPTE292M, SMPTE 259M-C
  • Auto video mode detection (3G/SD/HD)
  • Cascade multiple units for extending the signal longerdistance
  • Simultaneous display with SDI and HDMI® signal
  • Frequency bandwidth: 225MHz/link (HDMI® 1.3)
  • SDI input:
    • SD-SDI: 480i at 60Hz, 576I at 50Hz
    • HD-SDI: 720P at 50/60Hz, 1,080i at 50/60Hz, 1,080P at 24, 25,30Hz
    • 3G-SDI: 1,080P at 50/60Hz
  • SDI output (bypass):
    • SD-SDI: 480i at 60Hz, 576i at 50Hz
    • HD-SDI: 720P at 50/60Hz, 1,080i at 50/60Hz, 1,080P at 24, 25,30Hz
    • 3G-SDI: 1,080P at 50/60Hz
  • VGA output:
    • 800 x 600 at 60Hz, 1,024 x 768 at 60Hz
    • 1,280 x 720 at 60Hz, 1,360 x 768 at 60Hz, 1,920 x 1,080 at60Hz
  • Chassis materials: aluminum and crystal plate
  • Power adapter: 5V 1A, recommend 12V 1A if acceptable
  • Dimensions: 130 x 77 x 24mm
  • SD-SDI: 480i at 60Hz, 576I at 50Hz
  • HD-SDI: 720P at 50/60Hz, 1,080i at 50/60Hz, 1,080P at 24, 25,30Hz
  • 3G-SDI: 1,080P at 50/60Hz
  • SD-SDI: 480i at 60Hz, 576i at 50Hz
  • HD-SDI: 720P at 50/60Hz, 1,080i at 50/60Hz, 1,080P at 24, 25,30Hz
  • 3G-SDI: 1,080P at 50/60Hz
  • 800 x 600 at 60Hz, 1,024 x 768 at 60Hz
  • 1,280 x 720 at 60Hz, 1,360 x 768 at 60Hz, 1,920 x 1,080 at60Hz
