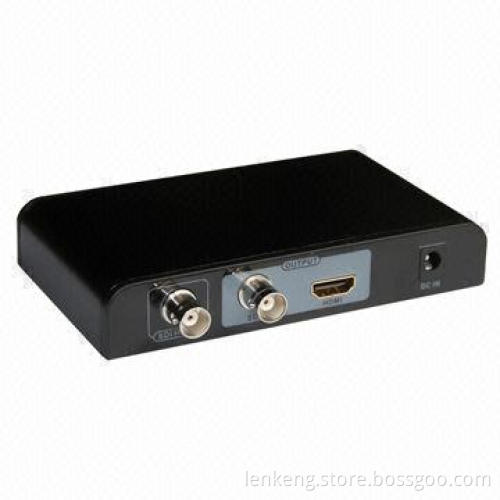

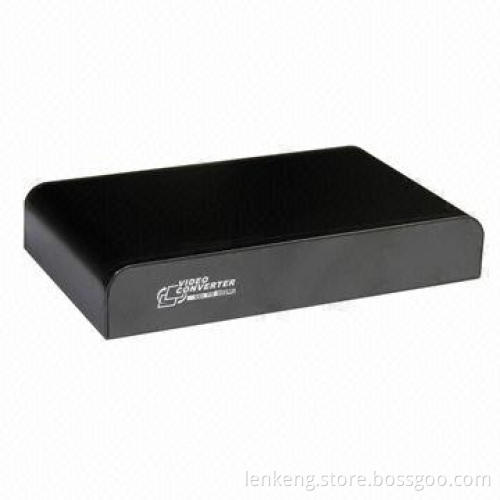

SDI to HDMI® Converter with SDI Bypass, 225MHz/Link Frequency Bandwidth

SDI to HDMI® Converter with SDI Bypass, 225MHz/Link Frequency Bandwidth

Get Latest Price

Payment Type:: T/T, PayPal, L/C or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, L/C or Western Union

Product Description

Description:

Converts SDI signal to HDMI® signal by Lenkeng new coloreye technology so that you can enjoy your favorite videos moreVivid on HDMI® displays and the conversion chipset with scalartechnology can convert the SDI signal to standard HDMI® signaland make it compatible with more devices
In addition, this converter is with industrial standard,aluminum alloy product housing, one piece appearance to make itprofessional

Specifications:

Operating at 2.970/1.001, 1.485/1.001GB/second and270MB/second
Supports SMPTE 425M (level A and B), SMPTE 424M, SMPTE 292M,SMPTE 259M-C
Auto-video mode detection (3G/SD/HD)
Cascade multiple units for extending the signal longerdistance
Simultaneous display with SDI and HDMI® signal
Frequency bandwidth: 225MHz/link (HDMI® 1.3)
SDI input:
SD-SDI: 480i at 60Hz, 576i at 50Hz
HD-SDI: 720P at 50/60Hz 1,080i at 50/60Hz, 1,080P at 2,425,30Hz
3G-SDI: 1,080P at 50/60Hz
SDI output: (bypass)
SD-SDI: 480i at 60Hz, 576i at 50Hz
HD-SDI: 720P at 50/60Hz, 1,080i at 50/60Hz, 1,080P at 24, 25,30Hz
3G-SDI: 1,080P at 50/60Hz

HDMI® output: 720P ATG 60Hz, 1,080P at 60Hz

Chassis materials: aluminum + crystal plate

Power adapter: 5V, 1A, recommend 12V, 1A if acceptable

Dimensions: 130 x 77 x 24mm

Converts SDI signal to HDMI® signal by Lenkeng new coloreye technology so that you can enjoy your favorite videos moreVivid on HDMI® displays and the conversion chipset with scalartechnology can convert the SDI signal to standard HDMI® signaland make it compatible with more devices

In addition, this converter is with industrial standard,aluminum alloy product housing, one piece appearance to make itprofessional

Operating at 2.970/1.001, 1.485/1.001GB/second and270MB/second

Supports SMPTE 425M (level A and B), SMPTE 424M, SMPTE 292M,SMPTE 259M-C

Auto-video mode detection (3G/SD/HD)

Cascade multiple units for extending the signal longerdistance

Simultaneous display with SDI and HDMI® signal

Frequency bandwidth: 225MHz/link (HDMI® 1.3)

SDI input:

SD-SDI: 480i at 60Hz, 576i at 50Hz

HD-SDI: 720P at 50/60Hz 1,080i at 50/60Hz, 1,080P at 2,425,30Hz

3G-SDI: 1,080P at 50/60Hz

SDI output: (bypass)
