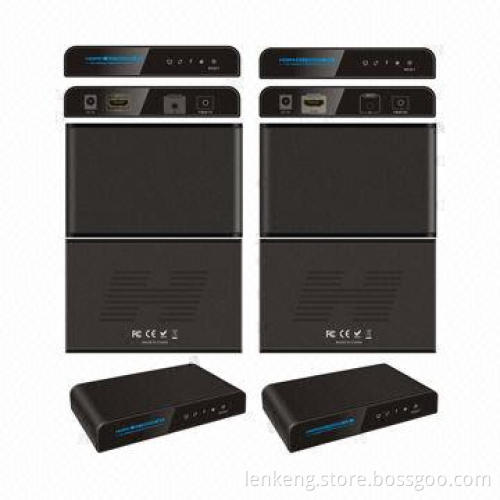

HDMI® Extender, Over-single Fiber with IR, Up to 20km

HDMI® Extender, Over-single Fiber with IR, Up to 20km

Get Latest Price

Payment Type:: T/T, PayPal, L/C or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, L/C or Western Union

Product Description

Description:

LKV378 HDMI® one fiber optic extender: this is the completesolution to solve the image mosaic, color distortion, transmissionfailure and other problems when HDMI® signal long distancetransmitted
It's designed for high-quality HDMI® video signallong-range extension of display system project, such as big screencurtain wall advertising project, industrial automatic control,armamentarium, CCTV, multimedia instruction and more

Features:

Input/output: 1 x HDMI®, 1 x fiber, 1 x IR
Support HDMI® input: 720p/1,080i/1,080p at 50/60Hz,576i/576p at 50Hz, 480i/480p at 60Hz
Support HDMI® output: 480p/60Hz, 576p/50Hz, 720p/1,080p at60/50Hz
HDMI® TMDS bandwidth: 10.2Gbps
DDC signal voltage: 5Vp-p (TTL)
Fiber type: SMF 0-20Km, SC port
Center wavelength: 1,310nm
Linked-circuit loss: d14dB, output power: e11dBm
Receive sensitivity: d32dBm
Infrared remote control: 38kHz
Extends the maximum: 20km

Applications:

LCD and plasma flat panel multimedia advertising project
Big screen LED curtain wall display project
The large projection equipment display system
The industrial automation and control system
Audio/video meeting system
Medical monitoring system
Security monitoring system
Multimedia network education system
Long-distance network server monitoring
Central control system
Military exercises command system
Orting transmission
