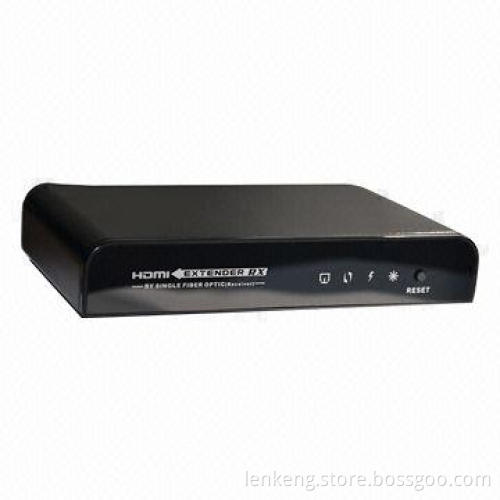

LKV378 HDMI Extenders, Over Single Fiber Optic, Single Mode, Up to 20kM Transmission Distance
  • LKV378 HDMI Extenders, Over Single Fiber Optic, Single Mode, Up to 20kM Transmission Distance
  • LKV378 HDMI Extenders, Over Single Fiber Optic, Single Mode, Up to 20kM Transmission Distance
LKV378 HDMI Extenders, Over Single Fiber Optic, Single Mode, Up to 20kM Transmission Distance
LKV378 HDMI Extenders, Over Single Fiber Optic, Single Mode, Up to 20kM Transmission Distance

LKV378 HDMI Extenders, Over Single Fiber Optic, Single Mode, Up to 20kM Transmission Distance

Get Latest Price
Payment Type:
T/T, PayPal, L/C or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, PayPal, L/C or Western Union
Product Description
Product Description
  • HDMI one fiber optic extender: this is the complete solution tosolve the image mosaic, color distortion, transmission failure andother problems when HDMI signal long distance transmitted
  • It is designed for high-quality HDMI video signal long-rangeextension of display system project, such as big screen curtainwall advertising project, industrial automatic control,armamentarium, CCTV, multimedia instruction and more
  • Input ports:
    • HDMI: 480i at 60Hz, 480P at 60Hz, 576i at 50Hz, 576P at 50Hz,720P at 50/60Hz, 1,080i at 50/60Hz, 1,080P at 50/60Hz
  • Supports HDCP version: HDCP1.2
  • Output ports:
    • HDMI: 480P at 60Hz, 576P at 50Hz, 720P at 50/60Hz, 1,080P at50/60Hz
  • Supports HDCP version: HDCP1.2
  • Transmission medium:
    • Connector type: SC fiber optic
    • Transmission distance: up to 20km
  • The video color format supported: 24-bit/deep color 30-bit/deepcolor 36-bit
  • Audio format supported: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
  • Transmission rate supported: 10.2Gbps
  • Machine property: alumina based material + ABS + crystalpanel
  • Item: HDMI extender over optic fiber
  • Material: alumina based material
  • HDMI network extender
  • IR synchronization technology
  • Network splitter technology
  • Network extension technology
  • Maximum transmission rate: 10.2Gbps
  • Audio signal: transmission format
  • L/R stereo audio
  • Input cable length: d5m (AWG26 HDMI 1.3 standard cable)
  • Output cable length: d5m (AWG26 HDMI 1.3 standard cable)
  • Interface: SC port
  • Fiber type: SMF (single mode fiber) 0-20km
  • Linked-circuit loss: d14dB
  • Output power: e-11dBm
  • Receive sensitivity: d-32dBm
  • HDMI: 480i at 60Hz, 480P at 60Hz, 576i at 50Hz, 576P at 50Hz,720P at 50/60Hz, 1,080i at 50/60Hz, 1,080P at 50/60Hz
  • HDMI: 480P at 60Hz, 576P at 50Hz, 720P at 50/60Hz, 1,080P at50/60Hz
  • Connector type: SC fiber optic
  • Transmission distance: up to 20km
