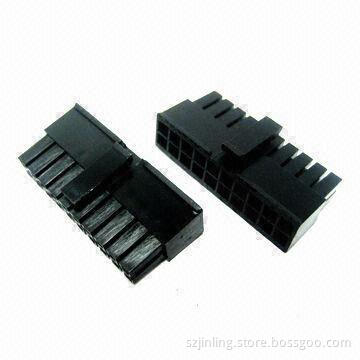

Power Connectors with 0.118 inch Dual Row Housing and Fully Isolated Terminals

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal

Product Description

2 to 24 circuits

Housing: polyester (UL 94V-0)

Contact: phosphor bronze

Plating: tin or gold

Fully isolated terminals

Fully polarized to mating headers or plugs

Integral pull tabs for ease in unmating

Optional panel mount ears

Accepts double cantilever crimp terminals (13020-T)

Specifications:

Voltage rating: 250V

Current rating: 5A AC/DC

Contact resistance: initial volume/10MΩ, maximum

Withstand voltage: 1,500V AC/minute

Insulation resistance: 1,000MΩ, minimum
