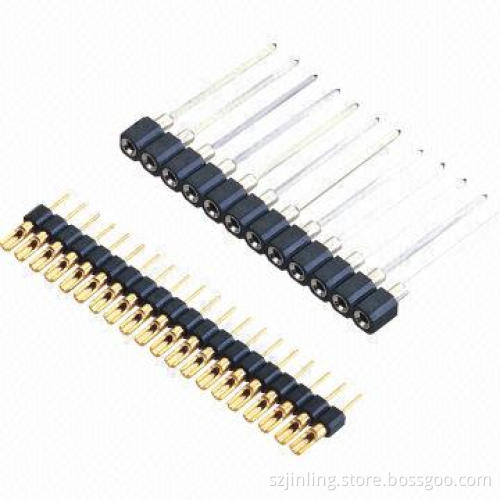

2.54mm Pitch Machine Pin Socket, Single Row Straight Angle
- Payment Type:
- T/T
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T |
|---|
- Current rating: 3Amp
- Operation temperature: -40 to +105°C
- Contact resistance: 20mΩ (maximum)
- Insulation resistance: 1,000mΩ (minimum)
- Withstanding voltage: 1,000V AC
- Insulator material: polyester (UL94v-0)
- Standard: PPS
- Contact material: brass
- Contact clip (4 fingers): beryllium copper (C17200)
- Plastic height: 3.0mm/3.5mm
- Number of pins per row: 1 x 64P
- Contact plating: tin/gold flash/5U-inch gold/10U-inch gold/15U-inch gold/30U-inch gold
