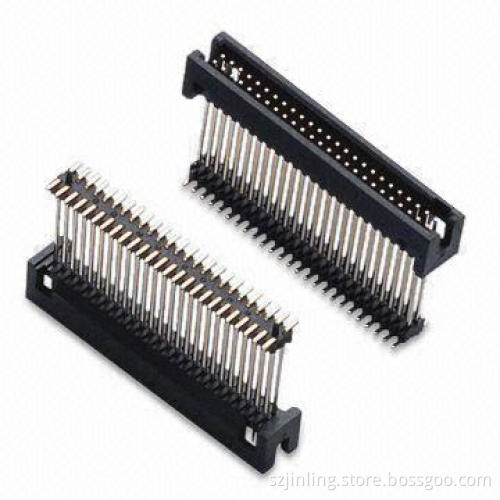

2.54mm Straight Box Header with Au/Sn over 50u-inch Ni Contact Plating and Current Rating of 3A
- Payment Type:
- T/T
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T |
|---|
- Current rating: 3Amp
- Operation temperature: -40 to 105°C
- Contact resistance: 20mΩ
- Insulation resistance: 1,000mΩ
- Withstanding voltage: 1,000V AC
- Insulator material: polyester (UL94V-0)
- Standard: PBT/PA6T+ 30%GF
- Contact material: brass
- Colors: black and white
- Specification is customized
- Experienced manufacturer
- RoHS and SGS marks, 100% test
- Pitch: 1.0/1.27/2.0/2.54mm
- Plastic height: 5.0/5.6/5.7/6.4/7.5/8.0/8.9/9.0/10/10.4/10.9/12/13.6/15mm
- Material: PBT/PA6T/LCP
