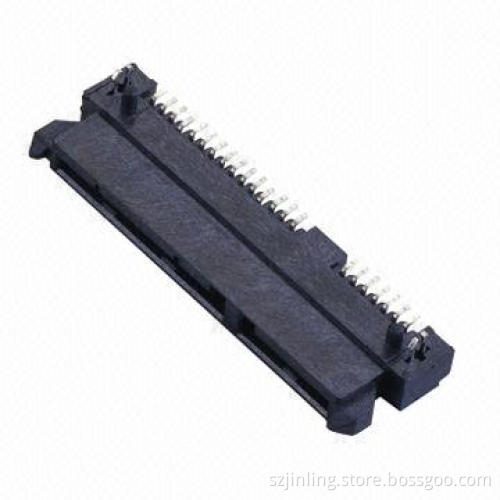

SATA 7 + 15P Female Header, SMT Type, 4.2mm Height

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Current rating: 1
Operating temperature: -55 to +125°C
Contact resistance: 40mΩ (maximum)
Insulation resistance: 1,000MΩ (minimum)
Electric withstanding: 1,000V AC/minute
Housing material: LCP UL94V-0
Color: black
Contact: phosphor bronze
Peg: brass
Finishing:
- Contact: 3u-inch gold/tin plating on contact area
- 100u-inch minimum tin-lead plating on solder tails
- 50u-inch minimum nickel under plating overall
- PEG: 100u-inch minimum tin-lead plating on solder tails
Packing: tube

Ordering information:

Height: 4.2/5.0mm
Function: straight angel/right angle/SMT type
contact plating: gold flash, tin, 10u-inch gold/tin, 15u-inch gold/tin, 30u-inch gold/tin
Color: black/white

Advantages:

We are devoted to provide professional service for the interconnect products and the best connection projects
We mainly produce the connectors on the Internet, storage, digital computer and the related products
We have strong research and development team of products and mold design
All kinds of our products got the certification of RoHS

Current rating: 1

Operating temperature: -55 to +125°C

Contact resistance: 40mΩ (maximum)

Insulation resistance: 1,000MΩ (minimum)

Electric withstanding: 1,000V AC/minute

Housing material: LCP UL94V-0

Color: black

Contact: phosphor bronze

Peg: brass

Finishing:
