Network LAN Cat6 Cable with HDPE Insulation, OEM Orders Welcomed

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Description:

Mechanical properties:

Electrical properties (at 20):

Packing:

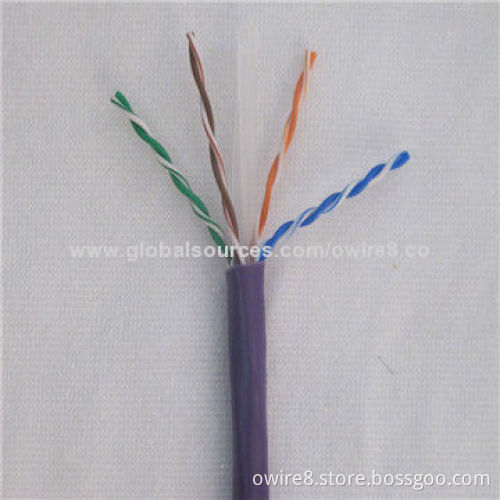

4 x 2 x 23AWG copper or CCA

HDPE insulation

PVC jacket

OEM orders are welcomed

Construction: conductor 23AWG, copper 0.565 ±0.02mm

Insulation HDPE 1.04 ±0.06mm

Cores/pairs: 8/4

Sheath 6.3 ±0.1mm PVC/LSOH/PVC (UV)/PE

Elongation minimum 300%

Temperature range: -20 up to +75 degrees Celsius

Tensile strength minimum 1.68kg/mm²

Conductor resistance maximum 9.38Ω/100m

Resistance unbalance maximum 2%

Insulation resistance maximum 150Ω/km

Mutual capacitance maximum 5,600pF/100m

Capacitance unbalance maximum 330pF/100m

Impedance 250 ±0.15 Ohms

Spark test 2,000V

Velocity of propagation 67%

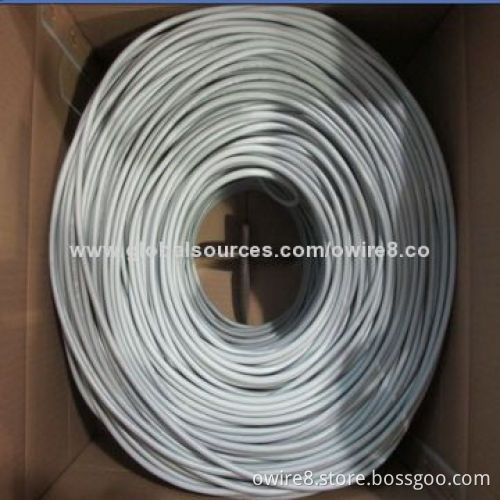

Length: 305m/roll other lengths available according to clients' request

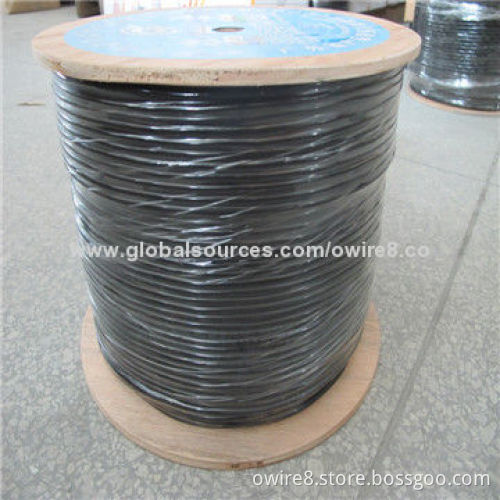

Inner packing: wooden reel, plastic reel and paper reel available

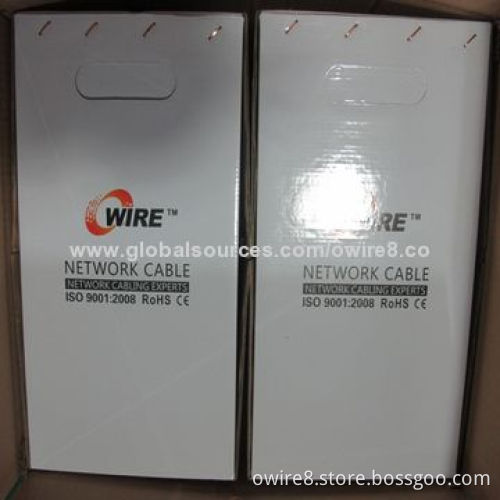

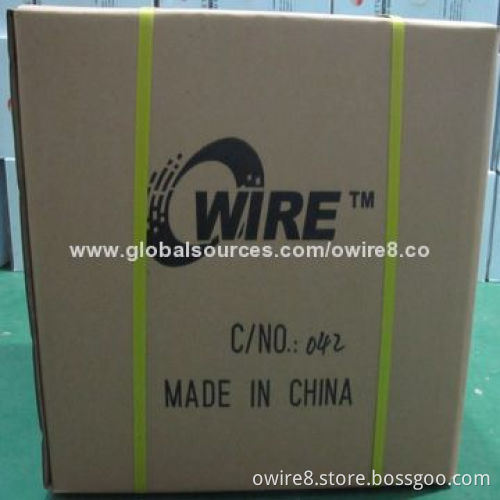

Outer packing: carton box, pull box

Other packing available according to clients' request
