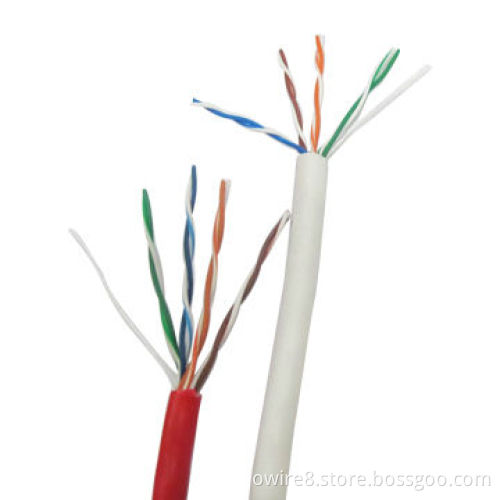

Cat5e Ethernet LAN Cables, Offer CE/Cu/CCA/CCS UTP/FTP/SFTP MarkNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T

Product Description

Rated temperature: 60 or 75°C

Unshielded twisted pairs

Conductor: solid bare copper 24AWG 0.51 ± 0.01mm

Cores diameter: 0.9 ± 0.02mm

Insulation: HD-PE (high-density polyethylene), minimum thickness of 0.18mm

Unrip rope: optional

Jacket: PVC or LSNH, minimum thickness of 0.55mm

Outer diameter: 5.3 ± 0.01mm

Color box size: 39 x 39 x 23.5cm, 305m

Fire: CM or CMR

Impedance: 100Ω ±15% at 1 to 100MHz

Reference standard: YD/T1019-2001, IEC11801, ANSI/TIA/EIA-568B, UL 444

Separator inside the cable realizes the more stable transmission

Solid copper conductor allows high-performance

Fast and reliable connection

Twisted pairs with bright color for easy recognition

Ripcord and footmark for convenient use

Smooth jacket for easy pulling in tight space

Color in light gray, dark gray, blue, white or as per your requirements

LAN cable for internet connection

Computer network cabling project

Broadband network communication

Digital ISDN network and ATM 155Mbps network

Ethernet network

Audio and data transmission

100Base-T4, 100Base-TX, 100VG-ANYLAN, 155Mbps ATM, 622Mbps ATM, 1000Base-T, 10GBase-T
