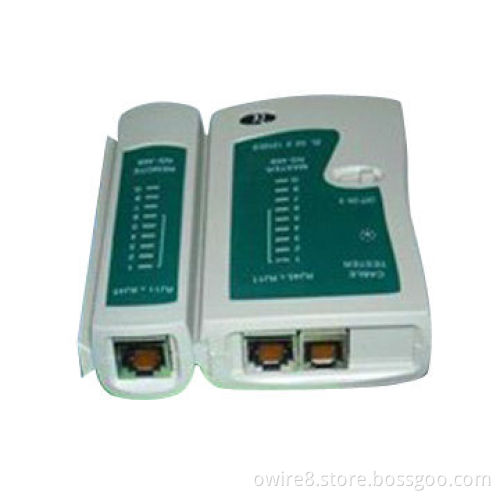

RJ45 and RJ11 cable tester

Get Latest Price

Payment Type:: L/C or T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C or T/T

Product Description

Specifications:

LAN cable tester

Test RJ11/RJ12/RJ45 cable

Test telephone wire & UTP/STP cable

Judge wrong connection

Power supply: 4x1.5V size AA batteries with power consumption 16mA

Display: Special 4x16 character big screen LCD lattice (valid visual filed 61.6 x 25.2mm)

Type of test cable: STP/UTP twin twisted cable, coaxial cable and telephone line

Working ambient temperature range: -10 Deg.C-+60 Deg.C

Tester RJ45 master port(M). Tester LOOPBACK RJ45 port(L). Far-end recognizer RJ45 port (R) The extra BNC and RJ11 converters are used to measure and check the continuity of coaxial cable and telephone line

Length measurement of twin twisted cable

Scope: 1,350M (31, 200ft)

Calibration accuracy: 3%(+/-0.5M or +/-1.5ft) (calibrating cable >5M)

Shipment accuracy: 5%(+/-0.5M or +/-1.5ft) (AMP, AT&T Class 5 cable)

Display: M or ft

Length calibration: User can set calibration factory by himself with a given length cable

The length of calibrating cable is more than 5M

Wire sequence and locating cable error: Check errors such as circuit, short circuit, reverse connection, cross-over or cross-talk interference

Locating cable: 8 far-end passive test jacks

Automatic time-delay shut off time: The tester does not operate for 30 minutes
