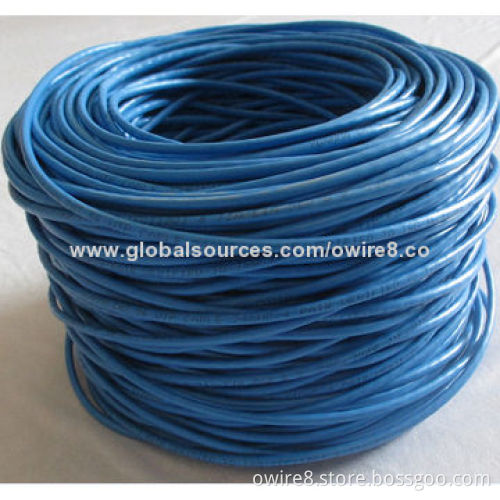

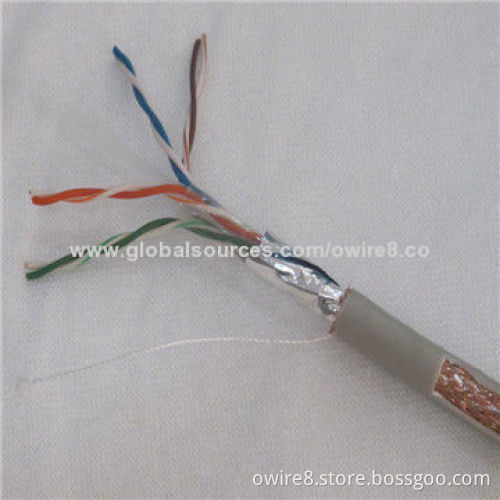

Cat5e sftp Cable with Pure Copper ConductorNew

Cat5e sftp Cable with Pure Copper ConductorNew

Get Latest Price

Payment Type:: L/C or T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C or T/T

Product Description

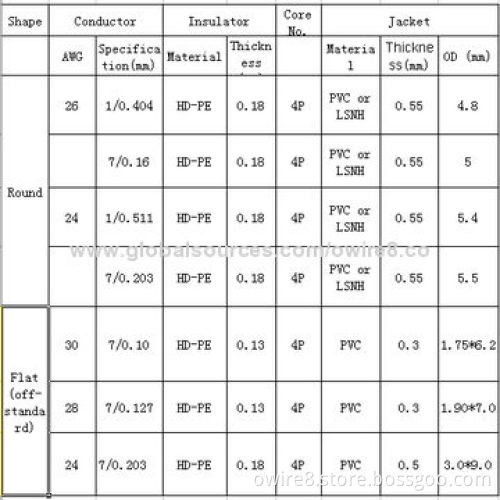

Specifications:

Specification: 4P/F/Mylar/D/AL
Rated temperatures: 60 or 75℃
Conductor: 26 or 24AWG stranding or solid bare copper
Insulation: HD-PE
Filler: PE cross or FM-PE thin slice
Drain wire: 26 or 24AWG stranding or solid tinned copper
Outer shielded: AL-Mylar 100% (minimum) coverage
Unripe rope: optional
Jacket: PVC or LSNH
Impedance: 100 ±15%Ω at 1-250MHz

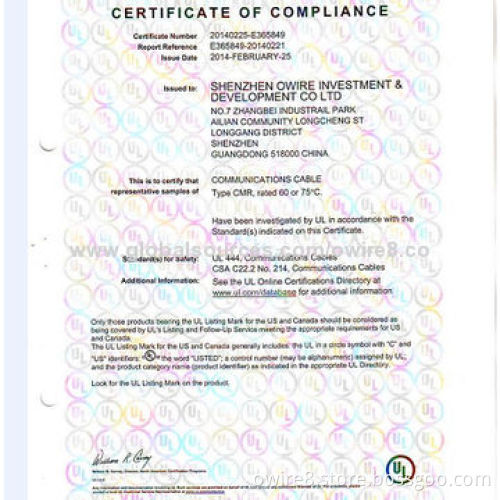

Reference standard: YD/T1019-2001/IEC11801, ANSI/TIA/EIA-568B, UL 444
Print legend: CM or CMR

Features:

Separator inside the cable realizes the stable transmission of the data
High-quality and low cost
Fast and reliable connection
Twisted pairs with bright color for easy recognition
Ripcord and footmark for convenient use
Smooth jacket for easy pulling in tight space
UTP, FTP, STP cable are available
Colors: light gray, dark gray, blue, white or as per your requirement

Applications:

Computer network cabling project
Broadband network communication
Digital ISDN network and ATM 155Mbps network
Ethernet network
Audio and data transmission

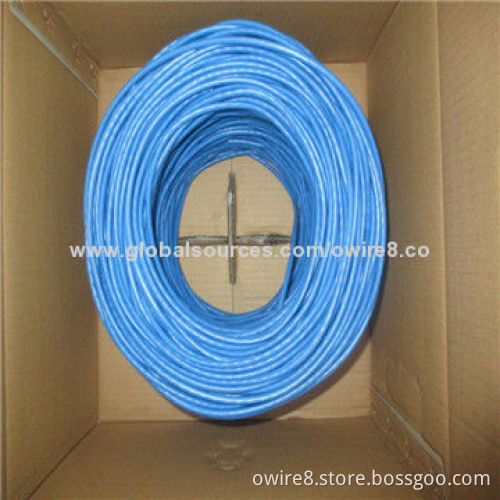

Packing: 305m/carton

Use: mainly uses in the building correspondence synthesis wiring system the work area correspondence leading-out terminal and between the connection distribution frames wiring, as well as the housing synthesis wiring system's user correspondence leading-out terminal arrives at place of exile between coil's wiring

Specification: 4P/F/Mylar/D/AL

Rated temperatures: 60 or 75℃

Conductor: 26 or 24AWG stranding or solid bare copper

Insulation: HD-PE

Filler: PE cross or FM-PE thin slice

Drain wire: 26 or 24AWG stranding or solid tinned copper

Outer shielded: AL-Mylar 100% (minimum) coverage

Unripe rope: optional

Jacket: PVC or LSNH

Impedance: 100 ±15%Ω at 1-250MHz

Reference standard: YD/T1019-2001/IEC11801, ANSI/TIA/EIA-568B, UL 444

Print legend: CM or CMR
