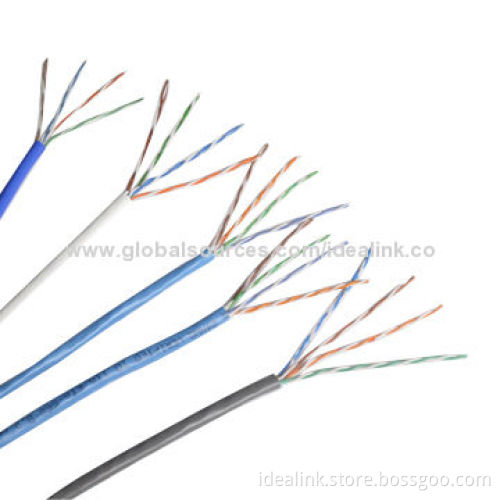

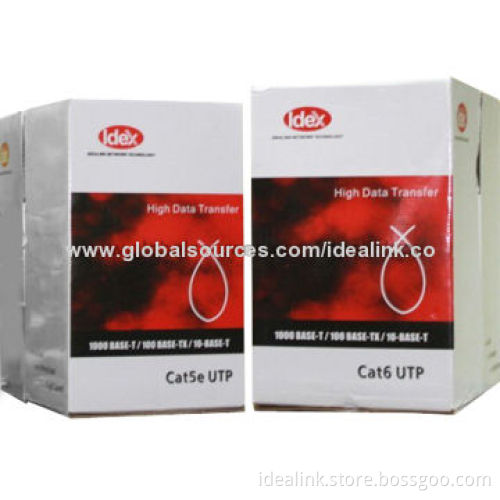

Cat5e PVC/LSZH/PE Bulk/UTP/FTP/SFTP 24AWG Networking Cables, OEM Orders Welcomed
  • Cat5e PVC/LSZH/PE Bulk/UTP/FTP/SFTP 24AWG Networking Cables, OEM Orders Welcomed
  • Cat5e PVC/LSZH/PE Bulk/UTP/FTP/SFTP 24AWG Networking Cables, OEM Orders Welcomed
Cat5e PVC/LSZH/PE Bulk/UTP/FTP/SFTP 24AWG Networking Cables, OEM Orders Welcomed
Cat5e PVC/LSZH/PE Bulk/UTP/FTP/SFTP 24AWG Networking Cables, OEM Orders Welcomed

Cat5e PVC/LSZH/PE Bulk/UTP/FTP/SFTP 24AWG Networking Cables, OEM Orders Welcomed

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • 1.0 to 100.0MHz impedance: 100Ω, ±15
    • 1.0 to 100.0MHz impedance delay screw: <45 (NS/100m)
    • Pair to ground capacitance unbalance: 330 (maximum)(PF/100m)
    • Conductor DC resistance: 20%, d93.8Ω/km
    • Resistance unbalance: 5%
    • Test object: jacket
    • Test material: LSZH
    • Before tensile strength: e13.8MPa
    • Aging elongation: e100%
    • Aging condition (C x hours): 100 x 240
    • After tensile strength: e85%
    • Aging elongation: e50% of aged
    • Cold bend: no crock (-20°C, ±2 x 4 hours)
  • Cable data:
    • Conductor: solid bare copper
    • AWG: 24#
    • Conductor diameter: 0.51mm
    • Insulation: PE
    • Average thickness: 0.20mm ±0.03
    • Minimum point thickness: 0.17mm
    • Insulation diameter: 0.91mm, ±0.03
    • Twisting lay length: 30mm underneath
    • Cabling lay length: 200mm underneath
    • Jacket: LSZH
    • Average thickness: 0.5mm
    • Minimum point thickness: 0.43mm
    • Outer diameter: 5.1mm ±1.0
    • Rip cord: supported
    • Weight: 32kg/km
  • OEM orders are welcomed
  • Core colors:
    • Pair 1: blue-white/blue
    • Pair 2: orange-white/orange
    • Pair 3: green-white/orange
    • Pair 4: brown-white/brown
  • Applications:
    • 4 pairs Cat5 cable is tested for power sum next, ELFEXT and delay skew
    • Propagation delay and any other criteria as specified in the emerging standard
    • Applications can include voice transmission, ISDN, ATM155 and 622, 100Mbps TPDDI, fast and Gigabit
    • Ethernet, shielding protects against EMI/RFI interference
  • 1.0 to 100.0MHz impedance: 100Ω, ±15
  • 1.0 to 100.0MHz impedance delay screw: <45 (NS/100m)
  • Pair to ground capacitance unbalance: 330 (maximum)(PF/100m)
  • Conductor DC resistance: 20%, d93.8Ω/km
  • Resistance unbalance: 5%
  • Test object: jacket
  • Test material: LSZH
  • Before tensile strength: e13.8MPa
  • Aging elongation: e100%
  • Aging condition (C x hours): 100 x 240
  • After tensile strength: e85%
  • Aging elongation: e50% of aged
  • Cold bend: no crock (-20°C, ±2 x 4 hours)
  • Conductor: solid bare copper
  • AWG: 24#
  • Conductor diameter: 0.51mm
  • Insulation: PE
  • Average thickness: 0.20mm ±0.03
  • Minimum point thickness: 0.17mm
  • Insulation diameter: 0.91mm, ±0.03
  • Twisting lay length: 30mm underneath
  • Cabling lay length: 200mm underneath
  • Jacket: LSZH
  • Average thickness: 0.5mm
  • Minimum point thickness: 0.43mm
  • Outer diameter: 5.1mm ±1.0
  • Rip cord: supported
  • Weight: 32kg/km
  • Pair 1: blue-white/blue
  • Pair 2: orange-white/orange
  • Pair 3: green-white/orange
  • Pair 4: brown-white/brown
  • 4 pairs Cat5 cable is tested for power sum next, ELFEXT and delay skew
  • Propagation delay and any other criteria as specified in the emerging standard
  • Applications can include voice transmission, ISDN, ATM155 and 622, 100Mbps TPDDI, fast and Gigabit
  • Ethernet, shielding protects against EMI/RFI interference
