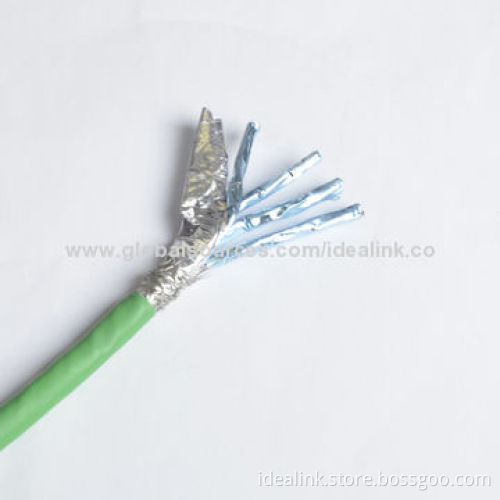

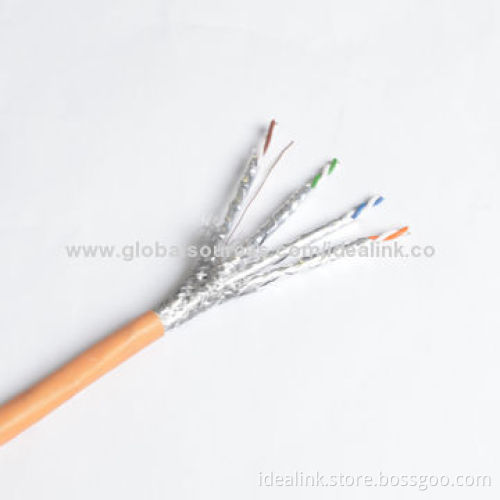

24AWG Cat7 LAN Networking Cables with Solid Bare Copper Conductors and Polyolefin Insulation

24AWG Cat7 LAN Networking Cables with Solid Bare Copper Conductors and Polyolefin Insulation

Get Latest Price

Payment Type:: T/T, Western Union and L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union and L/C at Sight

Product Description

Specifications:

Conductor: solid bare copper
AWG: 24
Conductor diameter: 0.583 and plus, 0.02mm
Insulation: foam, skin and PE
Insulation average thickness: 0.419mm (0.369mm minimum at any point)
Jacket: PVC/LSZH
Sheath average thickness: 0.05mm (0.40mm minimum at any point)
Sheath diameter: 7.4 ±0.3mm
Elongation: 100% (minimum)
Tensile strength: 1.407kg/m² (minimum)
Aging at 100 for 168 hours:
- Minimum elongation retention: 50%
- Minimum tensile strength retention: 75%
Colors:
- Blue to white/blue
- Orange to white/orange
- Green to white/green
- Green to white/green

Electrical performance:

Spark test: 1,050V AC
Dielectric strength: 2,500V DC/3 seconds
Insulation resistance test: 150MΩ/km (minimum)
Conductor resistance: 9.38mΩ/100m at 20° (maximum)
Resistance unbalance: 2% (maximum)
Capacitance unbalance: 160pF/100m (maximum)
Mutual capacitance: 5,600pF/100m (maximum)
Impedance:
- 64kHz: 125Ω ±20%
- 1 to 250MHz: 100Ω ±15%
- 300 to 600MHz: 100Ω ±25%

Standard compliance:

All proposed category 7 requirements as per ANSI/TIA/EIA, IEC and CENELEC EN marks
ANSI/TIA/EIA 568-B.2-10, draft
IEC 11801 class F, 2nd edition
CENELEC EN 50173-1
CENELEC EN 50288-4-1, 2nd edition
CENELEC EN 50288-4-2
Flame retardancy is verified according to IEC 60332-1-2
OEM orders are welcomed
Conductor: solid bare copper/CCS/CCA
AWG: 23/24
Insulation: foam PE/solid PE
Braiding: 64/96/112/128

Applications:

10Base-T Ethernet
1,000Base-Tx Gigabit Ethernet
10Base-T
100Base-T fast Ethernet (IEEE 802.3)
100VG-any LAN (IEEE 802.12)
155/622Mbps ATM
550MHz broadband video, voice, T1 and ISDN

Packing: wooden roller

Conductor: solid bare copper

AWG: 24

Conductor diameter: 0.583 and plus, 0.02mm

Insulation: foam, skin and PE

Insulation average thickness: 0.419mm (0.369mm minimum at any point)

Jacket: PVC/LSZH

Sheath average thickness: 0.05mm (0.40mm minimum at any point)

Sheath diameter: 7.4 ±0.3mm

Elongation: 100% (minimum)

Tensile strength: 1.407kg/m² (minimum)

Aging at 100 for 168 hours:

Minimum elongation retention: 50%
Minimum tensile strength retention: 75%

Colors:

Blue to white/blue
Orange to white/orange
Green to white/green
Green to white/green

Minimum elongation retention: 50%

Minimum tensile strength retention: 75%

Blue to white/blue

Orange to white/orange

Green to white/green

Spark test: 1,050V AC

Dielectric strength: 2,500V DC/3 seconds

Insulation resistance test: 150MΩ/km (minimum)

Conductor resistance: 9.38mΩ/100m at 20° (maximum)

Resistance unbalance: 2% (maximum)

Capacitance unbalance: 160pF/100m (maximum)

Mutual capacitance: 5,600pF/100m (maximum)

Impedance:

64kHz: 125Ω ±20%
1 to 250MHz: 100Ω ±15%
300 to 600MHz: 100Ω ±25%

64kHz: 125Ω ±20%

1 to 250MHz: 100Ω ±15%

300 to 600MHz: 100Ω ±25%

All proposed category 7 requirements as per ANSI/TIA/EIA, IEC and CENELEC EN marks

ANSI/TIA/EIA 568-B.2-10, draft

IEC 11801 class F, 2nd edition

CENELEC EN 50173-1

CENELEC EN 50288-4-1, 2nd edition

CENELEC EN 50288-4-2

Flame retardancy is verified according to IEC 60332-1-2

OEM orders are welcomed

Conductor: solid bare copper/CCS/CCA

AWG: 23/24

Insulation: foam PE/solid PE

Braiding: 64/96/112/128

10Base-T Ethernet

1,000Base-Tx Gigabit Ethernet

10Base-T

100Base-T fast Ethernet (IEEE 802.3)

100VG-any LAN (IEEE 802.12)

155/622Mbps ATM

550MHz broadband video, voice, T1 and ISDN
