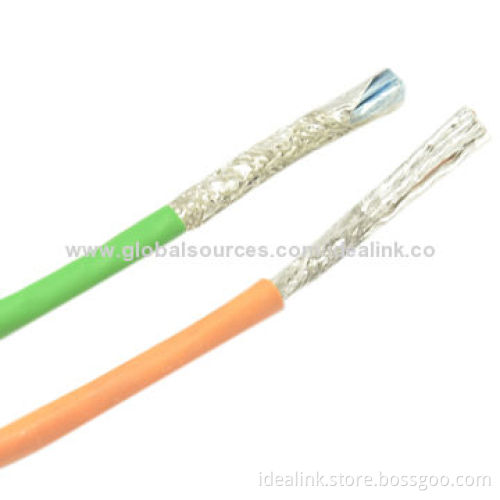

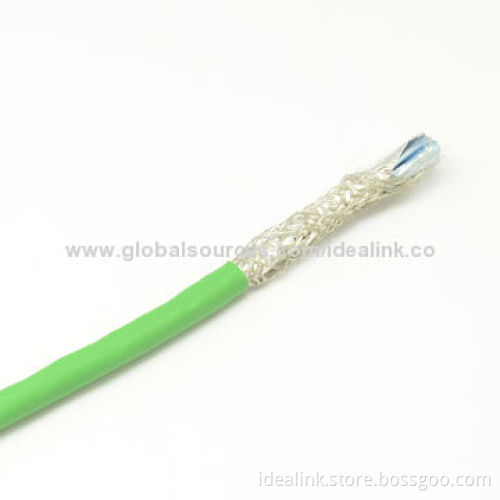

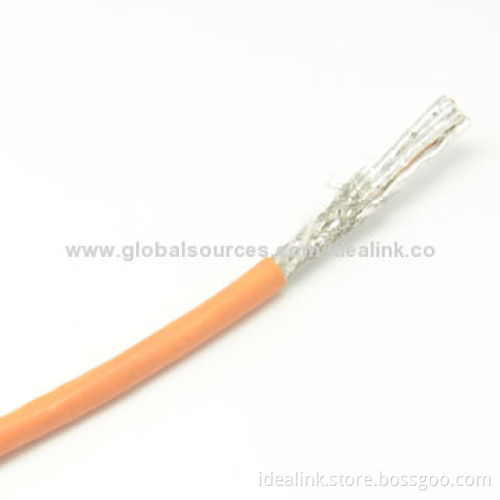

Cat 7 SFTP, 4-pair Solid Copper Twisted Wire, 1,000ft LSZH/PVC Jacket, OEM Orders Welcomed

Cat 7 SFTP, 4-pair Solid Copper Twisted Wire, 1,000ft LSZH/PVC Jacket, OEM Orders Welcomed

Get Latest Price

Payment Type:: T/T, Western Union and L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union and L/C at Sight

Product Description

Specifications:

Conductor diameter: 0.583mm and ±0.02
Insulation: foam-skin PE
Insulation average thickness: 0.419mm (0.369mm minimum at any point)
Jacket: PVC/LSZH
Sheath average thickness: 0.05mm (0.40mm minimum at any point)
Sheath diameter: 7.4 and ±0.3mm
Elongation: 100% (minimum)
Tensile strength: 1.407kg/m² (minimum)
Aging at 100 for 168 hours:
- Minimum elongation retention: 50%
- Minimum tensile strength retention: 75%
OEM orders are welcome
Colors:
- Blue: white/blue
- Orange: white/orange
- Green: white/green

Electrical performance:

Spark test: 1,050V AC
Dielectric strength: 2,500V DC/3 seconds
Insulation resistance test: 150M©/km (minimum)
Conductor resistance: 9.38©/100m at 20°C(maximum)
Resistance unbalance: 2% (maximum)
Capacity unbalance: 160pF/100m (maximum)
Mutual capacity: 5,600pF/100m (maximum)

Impedance:

64kHz: 125© ± 20%
1 to 250MHz: 100© ± 15%
300 to 600MHz: 100© ± 25%

Standard compliance:

All proposed category 7 requirements as per ANSI/TIA/EIA, IEC and CENELEC EN standards
ANSI/TIA/EIA 568-B, 2 to 10, draft
IEC 11801 class F, 2nd edition
CENELEC EN 50173-1
CENELEC EN 50288-4-1, 2nd edition
CENELEC EN 50288-4-2
Flame retardant is verified according to IEC 60332-1-2
Conductor: solid bare copper/CCS/CCA
AWG: 23/24
Insulation: foam PE/solid PE
Braiding: 64/96/112/128
Jacket: PVC/LSZH

Applications:

10G Base-T Ethernet, 1,000Base-TX gigabit Ethernet, 10Base-T,100Base-T fast Ethernet (IEEE802.3), 100VG-AnyLAN (IEEE802.12),155/622Mbps ATM, 550MHz broadband video, voice, T1, ISDN

Packing: wooden roller

Conductor diameter: 0.583mm and ±0.02

Insulation: foam-skin PE

Insulation average thickness: 0.419mm (0.369mm minimum at any point)

Jacket: PVC/LSZH

Sheath average thickness: 0.05mm (0.40mm minimum at any point)

Sheath diameter: 7.4 and ±0.3mm

Elongation: 100% (minimum)

Tensile strength: 1.407kg/m² (minimum)

Aging at 100 for 168 hours:

Minimum elongation retention: 50%
Minimum tensile strength retention: 75%

OEM orders are welcome

Colors:

Blue: white/blue
Orange: white/orange
Green: white/green

Minimum elongation retention: 50%

Minimum tensile strength retention: 75%

Blue: white/blue

Orange: white/orange

Green: white/green

Spark test: 1,050V AC

Dielectric strength: 2,500V DC/3 seconds

Insulation resistance test: 150M©/km (minimum)

Conductor resistance: 9.38©/100m at 20°C(maximum)

Resistance unbalance: 2% (maximum)

Capacity unbalance: 160pF/100m (maximum)

Mutual capacity: 5,600pF/100m (maximum)

All proposed category 7 requirements as per ANSI/TIA/EIA, IEC and CENELEC EN standards

ANSI/TIA/EIA 568-B, 2 to 10, draft

IEC 11801 class F, 2nd edition

CENELEC EN 50173-1

CENELEC EN 50288-4-1, 2nd edition

CENELEC EN 50288-4-2

Flame retardant is verified according to IEC 60332-1-2

Conductor: solid bare copper/CCS/CCA

AWG: 23/24

Insulation: foam PE/solid PE

Braiding: 64/96/112/128

Jacket: PVC/LSZH

10G Base-T Ethernet, 1,000Base-TX gigabit Ethernet, 10Base-T,100Base-T fast Ethernet (IEEE802.3), 100VG-AnyLAN (IEEE802.12),155/622Mbps ATM, 550MHz broadband video, voice, T1, ISDN
