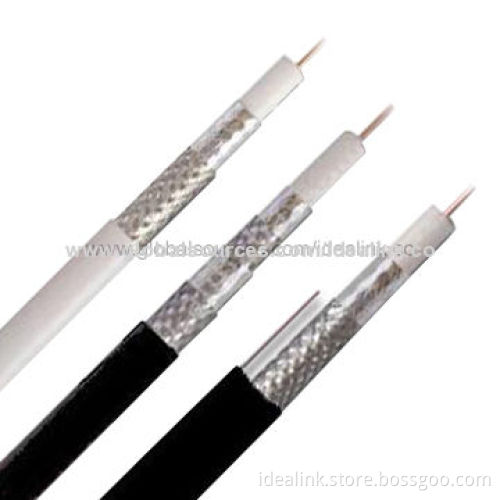

Coaxial Cables with Flexible Solid, Stranded Copper Wire and PVC/PE Jacket

Get Latest Price

Payment Type:: T/T, Western Union or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or L/C at Sight

Product Description

Center conductors: tinned copper, bare copper and copper clad steel are available

Al-foil: non-bonded Al-foil, bonded Al-foil, double-bonded Al-foil and double non-bonded aluminum foil are available

Braiding wires:

Aluminum, bare copper and tinned copper are available
Diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm are available
Net weight: 32, 48, 64, 72, 80, 96, 120, 128, 144g and more are available
Coverage: between 30 to 97% available

PVC jacket of flame retardant, UV or UL marks

This commonly used 75Ω cable can be used in applications where cable assemblies must be built-in the field

The solid 18AWG center conductor result in a cable with very low-attenuation properties

18AWG, copper covered steel wire insulated with HDPE

Shield with 100% AL foil and 60% AL braiding, jacket materials UL rated PVC

Impedance: 75 ±3©

Velocity of propagation: 85%

Capacity: 52pF/meter

Return loss: 20dB (minimum)

Attenuation (dB/100 meters):

5MHz: 2.81dB
500MHz: 18.6dB
55MHz: 6.72dB
550MHz: 19.48dB
187MHz: 11.80dB
600MHz: 20.31dB
250MHz: 13.43dB
750MHz: 22.84dB
350MHz: 15.72dB
865MHz: 24.65dB
400MHz: 16.71dB
1000MHz: 26.61dB

Certificates: UL, CE and RoHS

Packing:

100, 200, 305m/roll, 100, 200, 300 yards/roll
Other length is available according to clients' request
Inner: wooden, plastic and paper reels are available
Outer: carton box, pull out box, pallet are available
Other packing available according to clients' request

Aluminum, bare copper and tinned copper are available

Diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm are available

Net weight: 32, 48, 64, 72, 80, 96, 120, 128, 144g and more are available

Coverage: between 30 to 97% available

5MHz: 2.81dB

500MHz: 18.6dB

55MHz: 6.72dB

550MHz: 19.48dB

187MHz: 11.80dB

600MHz: 20.31dB

250MHz: 13.43dB

750MHz: 22.84dB

350MHz: 15.72dB

865MHz: 24.65dB

400MHz: 16.71dB

1000MHz: 26.61dB

100, 200, 305m/roll, 100, 200, 300 yards/roll

Other length is available according to clients' request

Inner: wooden, plastic and paper reels are available

Outer: carton box, pull out box, pallet are available

Other packing available according to clients' request
