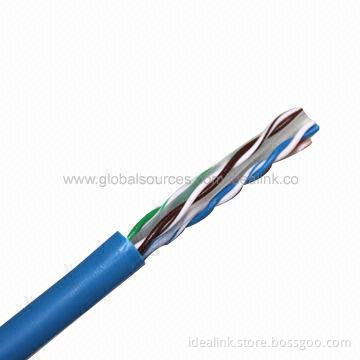

Cat6 LAN Cable, Independently Verified, 4-pair UTP CCA/CCS/Cu Material

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Conductor: solid bare copper
Conductor diameter: 0.56mm
Insulation: PE
Average thickness (±0.03mm): 0.22mm
Minimum point thickness: 0.18mm
Insulation diameter (±0.03mm): 1.02mm
Twisted lay length: 30mm (underneath)
Cabling lay length: 200mm (underneath)
Average thickness: 0.5mm
Minimum point thickness: 0.43mm
Outer diameter (±1.00mm): 6.0mm
Rip cord: supported
Weight (normal): 42kg/km

Core colors:

Pair 1: blue white/blue
Pair 2: orange white/orange
Pair 3: green white/orange
Pair 4: brown white/brown

Electrical performance (at 250MHz):

1.0 to 100.0MHz with impedance of 100© ±15
100.0 to 250.0MHz with impedance of 100© ±22
Impedance delay screw: <45ns/100m
Pair to ground capacitance unbalance: 330pF/100m (maximum)
Conductor DC resistance 20%: <73.2©/km
Resistance unbalance: 5%
Test object: jacket
Test material: PVC
Before tensile strength: e13.8MPa
Aging elongation: e100%
Aging condition (c x hours): 100 x 240
After tensile strength: e85%MPa of unaged
Aging elongation: e50% of aged
Cold bend (-20 ±2°C x 4 hours): no crack

LAN cable standard compliance:

All proposed category 6 requirement as per ANSI/TIA/EIA, ISO/IEC and Cenelec EN standards
ANSI/TIA/EIA 568-B.2-1 Cat6
ISO/IEC 11801 class E 2nd edition
Cenelec EN 61156-6
Cenelec EN 50173-1
Cenelec EN 50288-5-1
Cenelec EN 50288-5-2
Flame-retardant is verified according to IEC 60332-1-2

OEM service:

Conductor: solid bare copper/CCS/CCA
AWG: 23/24
Insulation: foam PE/solid PE
Jacket: PVC/LSZH

Applications:

Pots T1/T1 fractional, ISDN basic and primary rate
4/16Mbps token ring (IEEE 802.5) 10base-T (IEEE802.5)
100Mbps TP-PMD.52/155Mbps ATM (ATM forum)
100base-T4 (fast Ethernet)
100VG-any LAN (IEEE802.12)
100baseT-T (fast Ethernet)
1Gbps Ethernet (IEEE802.3)
Packaging: wooden roller

Conductor: solid bare copper

Conductor diameter: 0.56mm

Insulation: PE

Average thickness (±0.03mm): 0.22mm

Minimum point thickness: 0.18mm

Insulation diameter (±0.03mm): 1.02mm

Twisted lay length: 30mm (underneath)

Cabling lay length: 200mm (underneath)

Average thickness: 0.5mm

Minimum point thickness: 0.43mm

Outer diameter (±1.00mm): 6.0mm

Rip cord: supported

Weight (normal): 42kg/km

Pair 1: blue white/blue

Pair 2: orange white/orange

Pair 3: green white/orange

Pair 4: brown white/brown

1.0 to 100.0MHz with impedance of 100© ±15

100.0 to 250.0MHz with impedance of 100© ±22

Impedance delay screw: <45ns/100m

Pair to ground capacitance unbalance: 330pF/100m (maximum)

Conductor DC resistance 20%: <73.2©/km

Resistance unbalance: 5%

Test object: jacket

Test material: PVC

Before tensile strength: e13.8MPa

Aging elongation: e100%

Aging condition (c x hours): 100 x 240

After tensile strength: e85%MPa of unaged

Aging elongation: e50% of aged

Cold bend (-20 ±2°C x 4 hours): no crack

All proposed category 6 requirement as per ANSI/TIA/EIA, ISO/IEC and Cenelec EN standards

ANSI/TIA/EIA 568-B.2-1 Cat6

ISO/IEC 11801 class E 2nd edition

Cenelec EN 61156-6

Cenelec EN 50173-1

Cenelec EN 50288-5-1

Cenelec EN 50288-5-2

Flame-retardant is verified according to IEC 60332-1-2

Conductor: solid bare copper/CCS/CCA

AWG: 23/24

Insulation: foam PE/solid PE

Jacket: PVC/LSZH

Pots T1/T1 fractional, ISDN basic and primary rate

4/16Mbps token ring (IEEE 802.5) 10base-T (IEEE802.5)

100Mbps TP-PMD.52/155Mbps ATM (ATM forum)

100base-T4 (fast Ethernet)

100VG-any LAN (IEEE802.12)

100baseT-T (fast Ethernet)

1Gbps Ethernet (IEEE802.3)

Packaging: wooden roller
